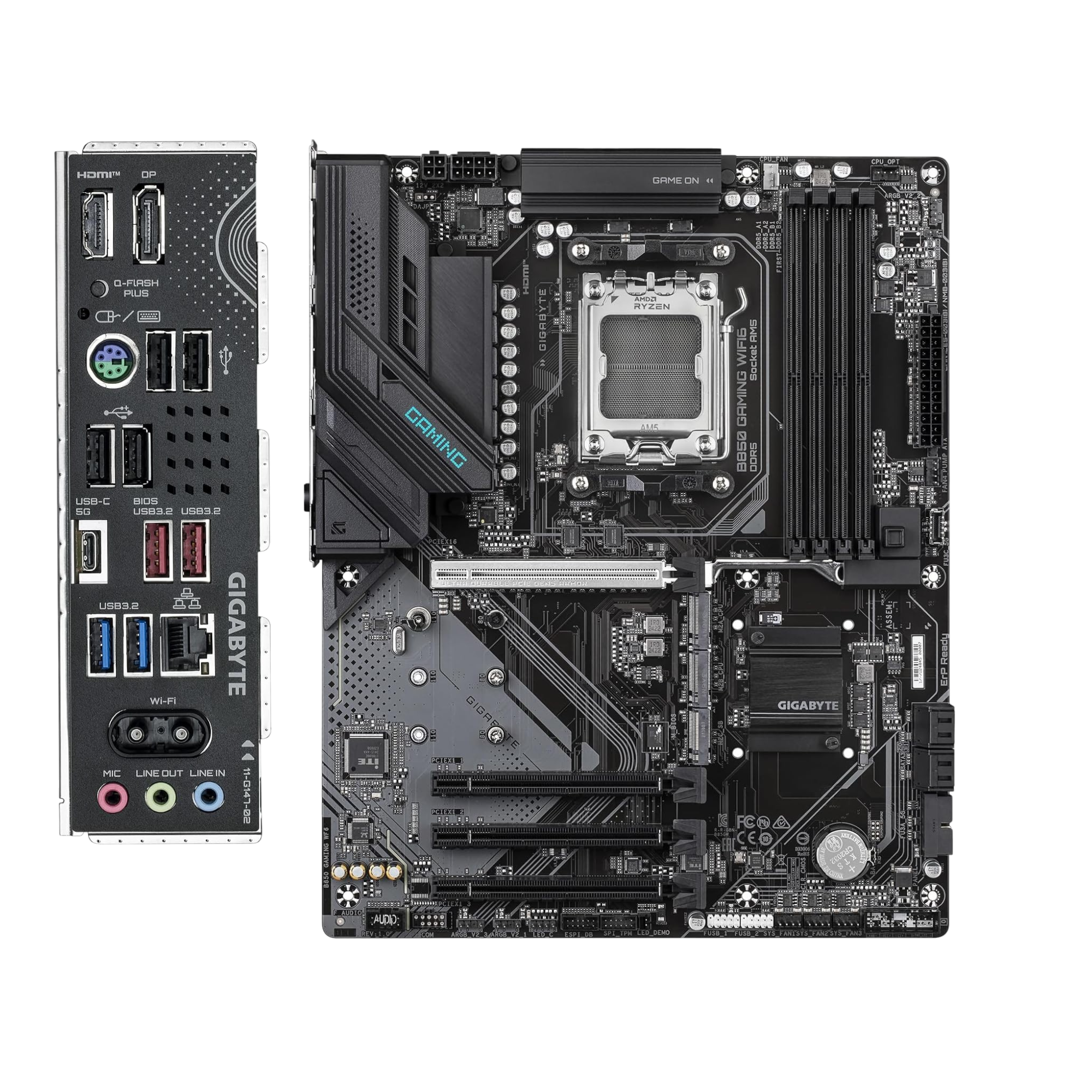

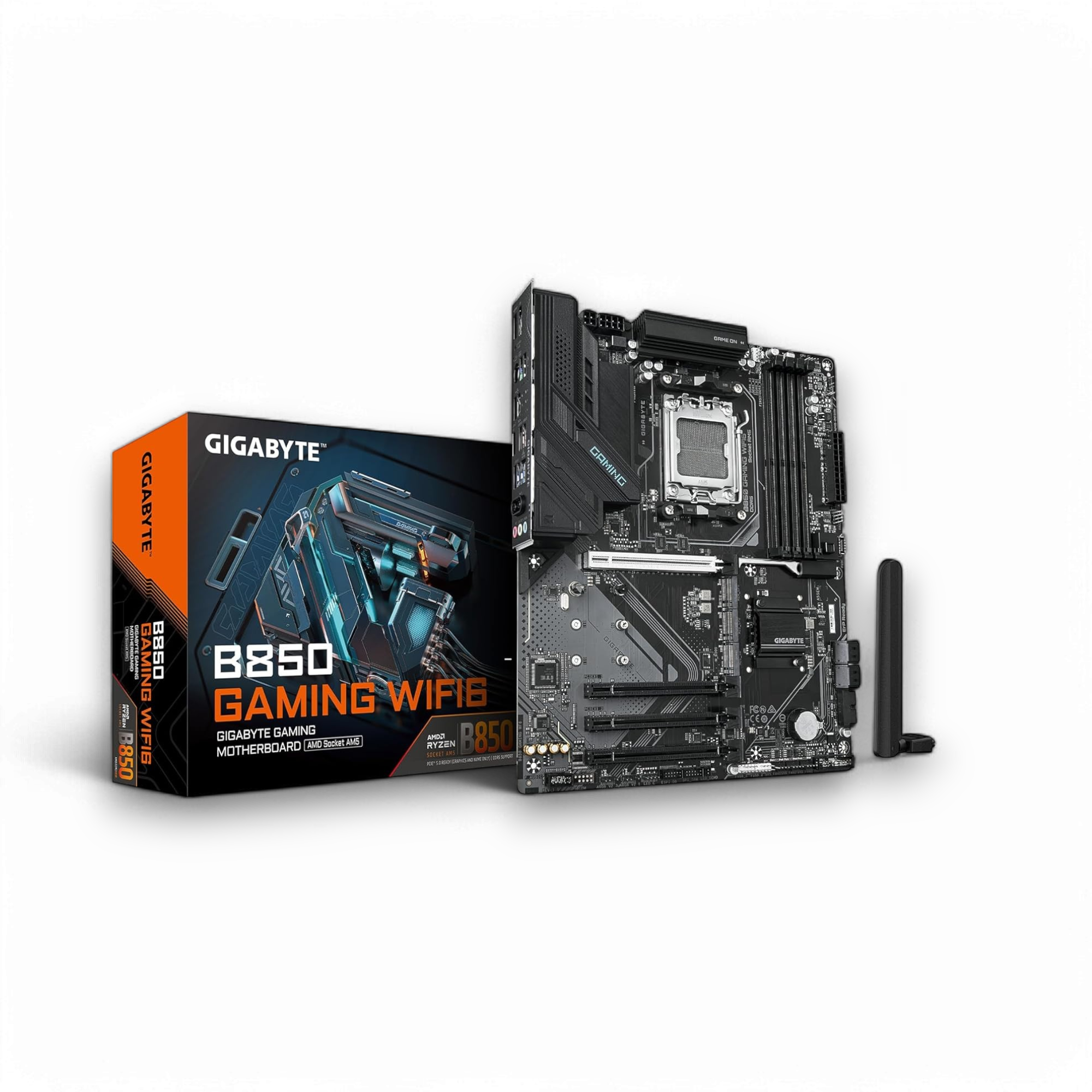

GIGABYTE B850 Gaming WIFI 6

Specifications:

• Socket: AM5 (Supports AMD Ryzen 7000 and 8000 series CPUs)
• Chipset: AMD B850
• Memory:
  • 4x DDR5 DIMM slots
  • Dual-channel support
  • Up to 128GB capacity
  • DDR5 support (e.g., 6000+ MHz OC)
• Expansion Slots:
  • 1x PCIe 5.0 x16 (for GPU)
  • 1x PCIe 4.0 x16 (x4 electrical)
  • 1x PCIe 3.0 x1
• Storage:
  • 1x PCIe 5.0 M.2 slot
  • 2x PCIe 4.0 M.2 slots
  • 4x SATA III ports
• Connectivity:
  • WiFi 6 (802.11ax) with Bluetooth 5.2
  • 2.5GbE LAN port
  • USB 3.2 Gen 2x2 (Type-C)
  • Multiple USB 3.2 Gen 2 and Gen 1 ports
• Audio:
  • High-end audio codec (e.g., Realtek ALC1200)
  • Premium audio capacitors
  • Supports 7.1-channel surround sound
• Cooling:
  • Extended heatsinks for VRM and M.2 slots
  • Multiple fan headers (including AIO pump support)
• Power Delivery:
  • Robust VRM design (e.g., 12+2 phase)
  • Reinforced power connectors
• Form Factor: ATX
• RGB Lighting:
  • Addressable RGB headers
  • GIGABYTE RGB Fusion support
• BIOS:
  • UEFI BIOS with user-friendly interface
• Additional Features:
  • Q-Flash Plus (BIOS update without CPU)
  • Anti-sulfur resistors for durability
  • Reinforced PCIe and DIMM slots
