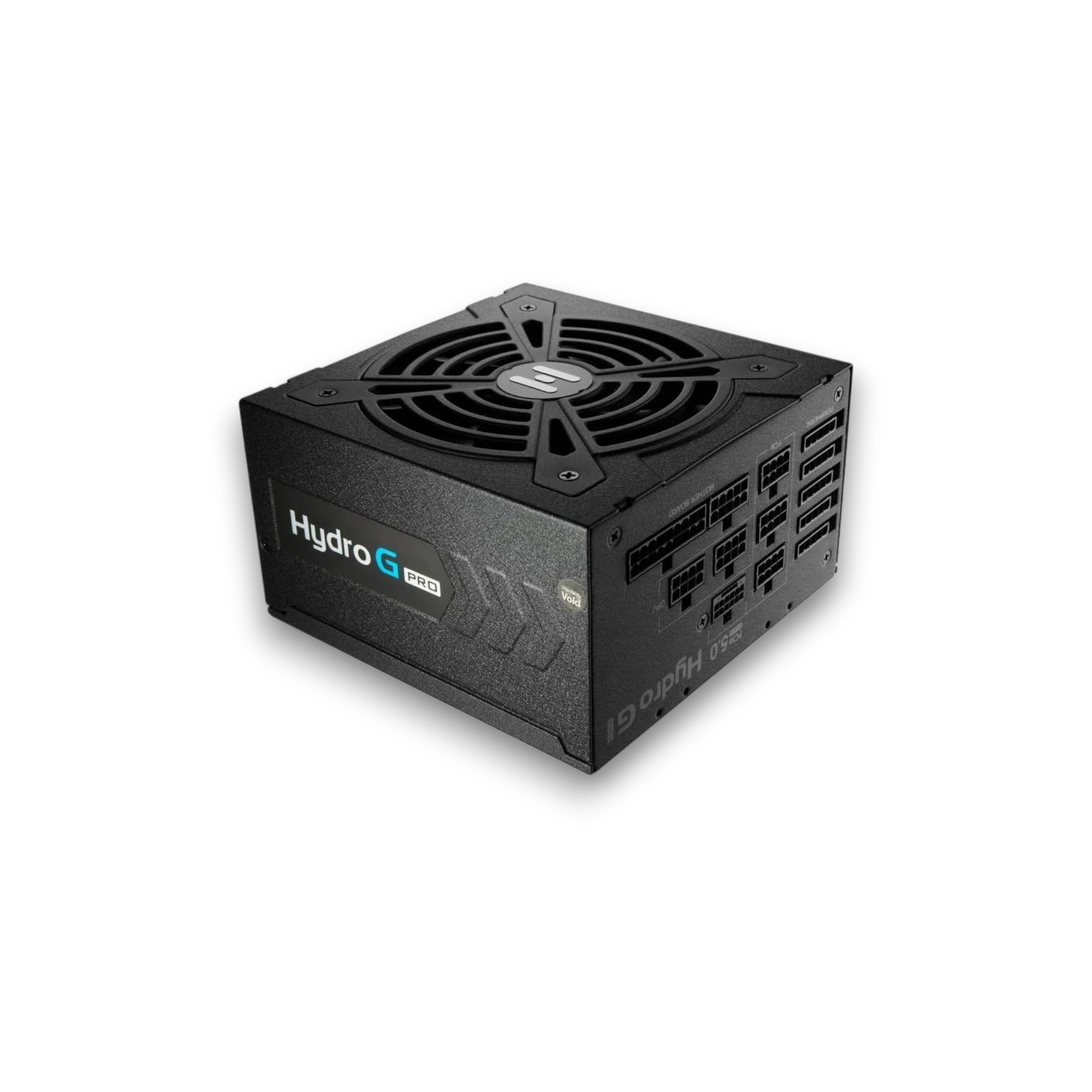

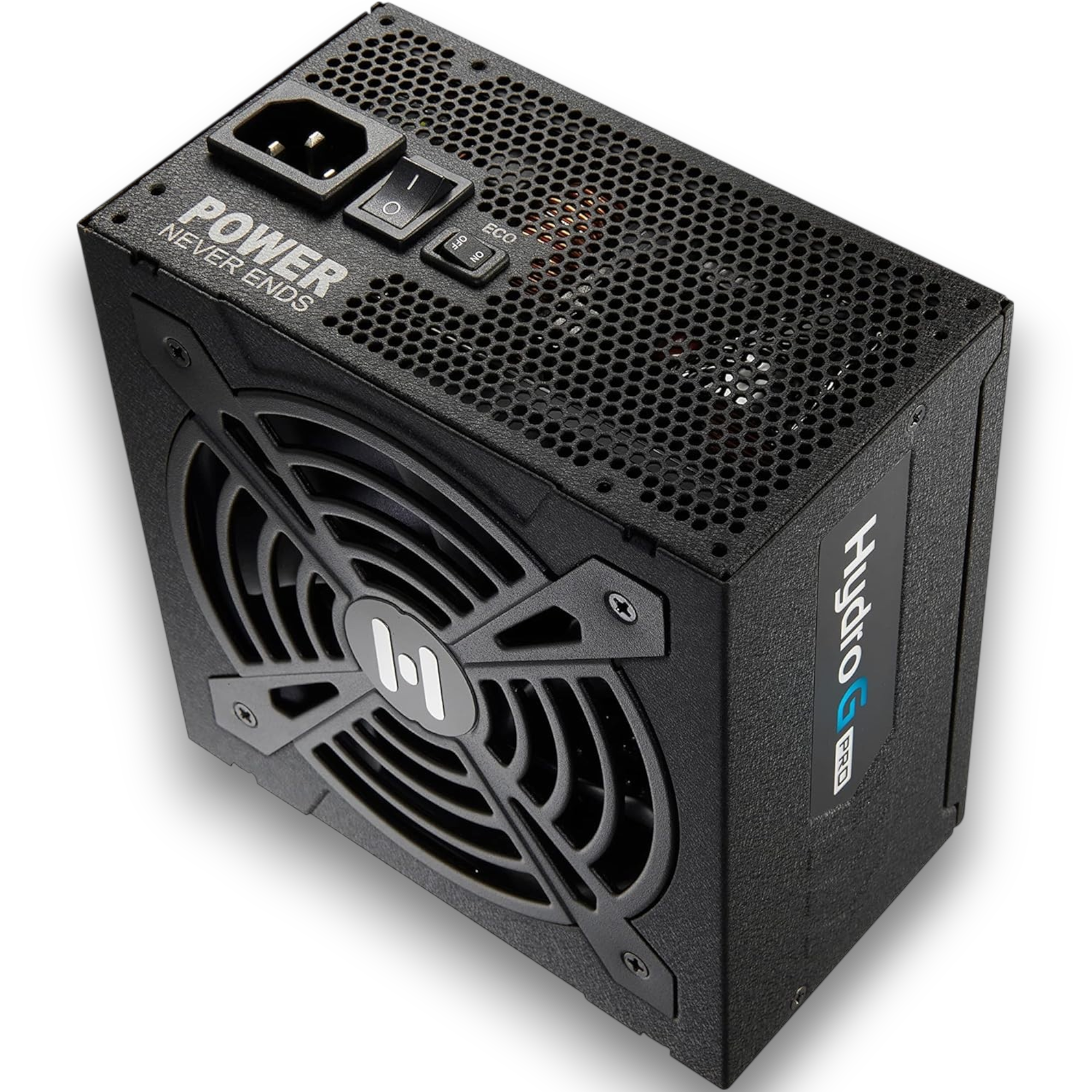

FSP Hydro G PRO 1000W ATX Fully Modular PSU

Specifications:

• Model: FSP Hydro G PRO 1000W

• Type: ATX Fully Modular PSU

• Wattage: 1000W

• Efficiency: 80 PLUS Gold certified (90% efficiency at 50% load)

• Modularity: Full modular (all cables detachable)

• Cooling System:

  • 135mm FDB hydraulic bearing fan
  • Zero RPM fan mode (silent operation under low load)
  • Intelligent temperature control

• PCIe 5.0 Support:

  • Native 12VHPWR connector (600W capable)
  • Compatible with RTX 4000 series GPUs

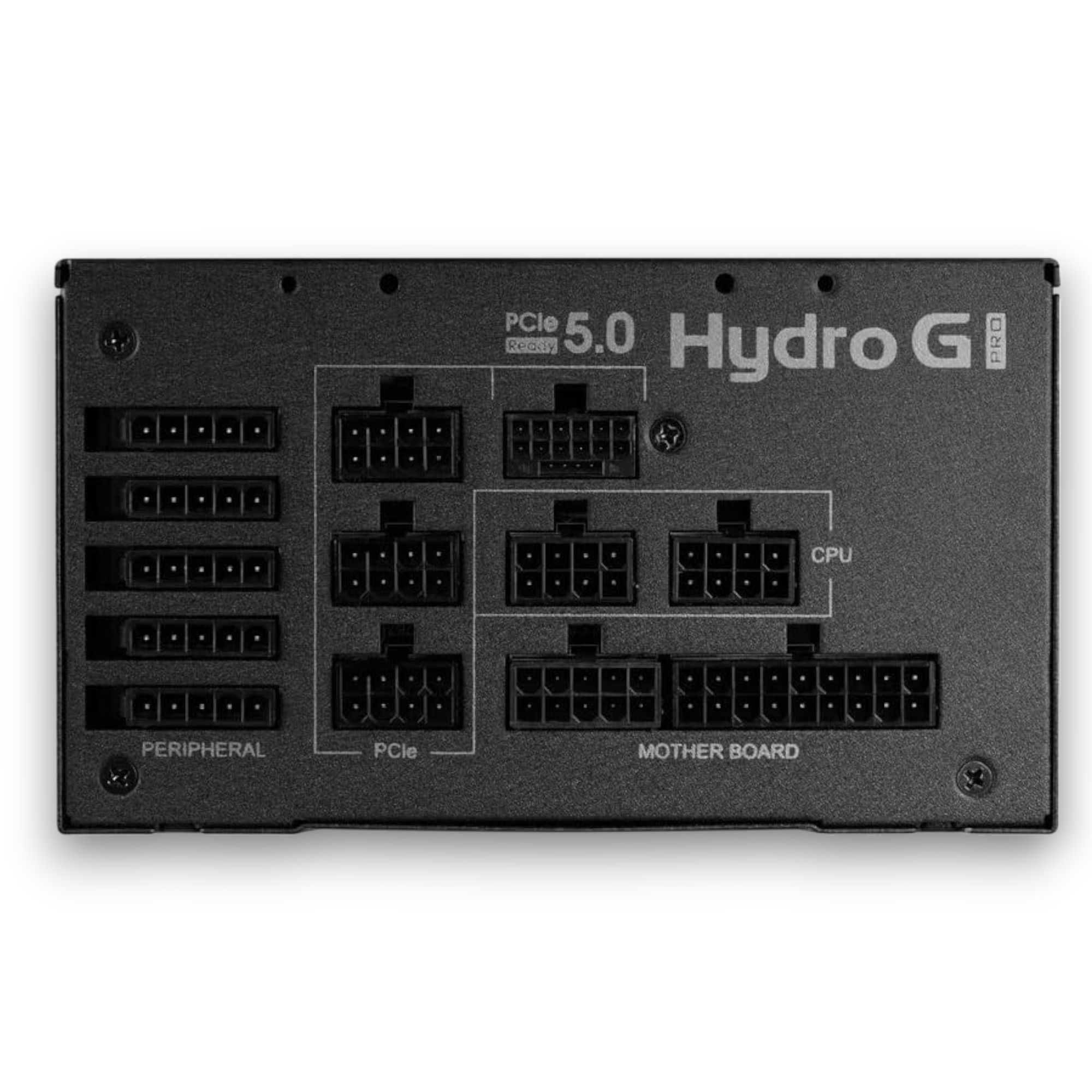

• Connectors:

  • 1x 24-pin ATX (20+4 pin)
  • 2x 8-pin EPS (4+4 pin) for CPU
  • 1x 12VHPWR (16-pin PCIe 5.0)
  • 6x PCIe 6+2 pin (for GPUs)
  • 12x SATA connectors
  • 5x Molex connectors
  • 1x Floppy connector

• Protection Features:

  • OVP (Over Voltage Protection)
  • UVP (Under Voltage Protection)
  • OPP (Over Power Protection)
  • SCP (Short Circuit Protection)
  • OTP (Over Temperature Protection)
  • OCP (Over Current Protection)

• Electrical Specifications:

  • Input Voltage: 100-240V (wide range)
  • Input Frequency: 47-63Hz
  • +12V Rail: Single rail (83.3A, 1000W)
  • MTBF: >100,000 hours

• Dimensions:

  • 150mm (W) ├ù 160mm (D) ├ù 86mm (H)
  • Standard ATX form factor

• Cables:

  • Flat black ribbon cables
  • Braided main power cables
  • Cable length: 600-700mm (varies by cable type)

• Compliance:

  • Safety: CE, CB, TUV, FCC, RCM, CCC
  • Environmental: RoHS, ErP Lot 6

• Warranty: 10 years limited warranty
