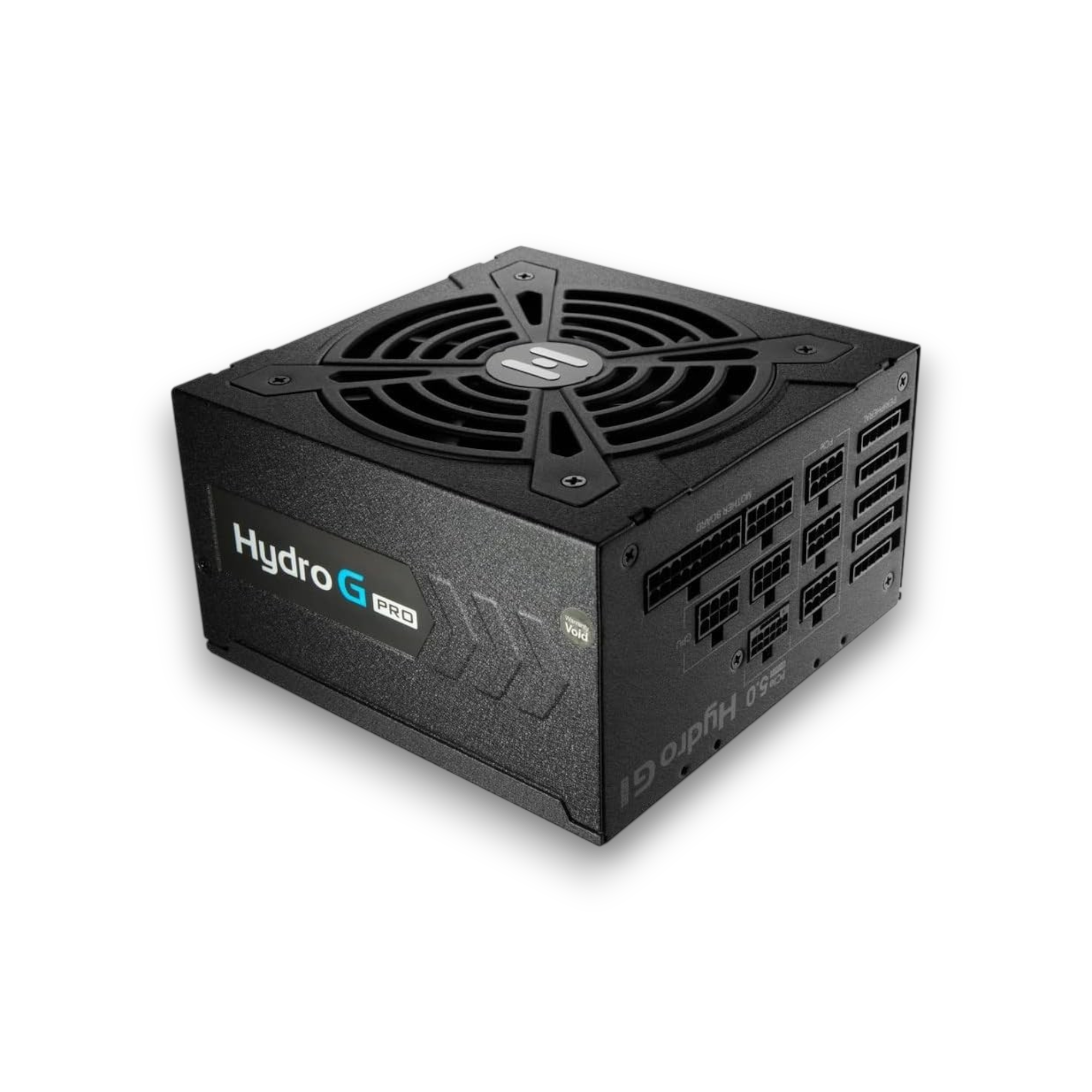

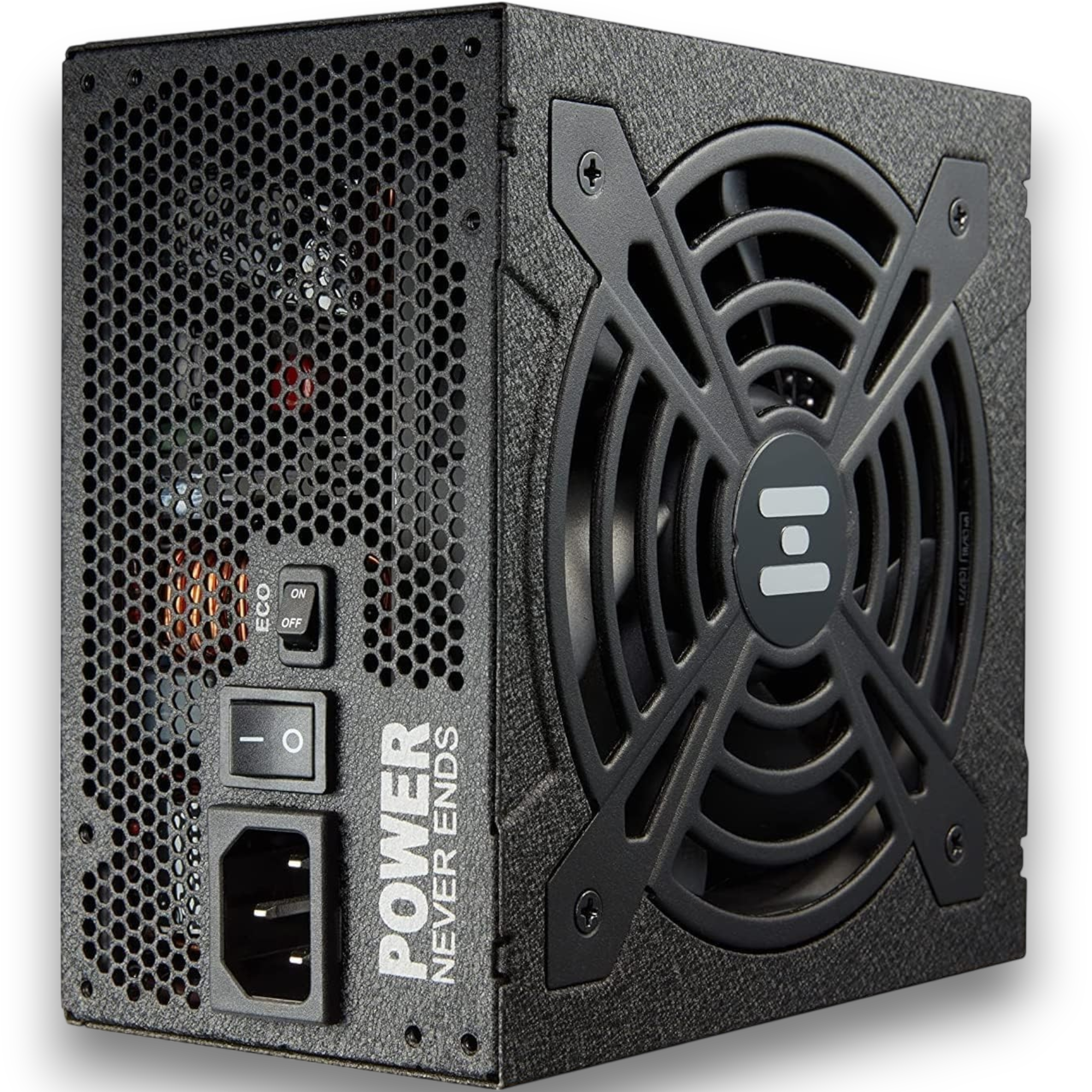

FSP Hydro G PRO 1200W ATX Fully Modular PSU

Model: FSP Hydro G PRO 1200W
Type: ATX Fully Modular PSU
Wattage: 1200W
Efficiency: 80 PLUS Gold certified (90% efficiency at 50% load)
Modularity: Full modular (all cables detachable)
Cooling System:
- 135mm FDB hydraulic bearing fan
- Zero RPM fan mode (silent operation under 30% load)
- Smart fan curve with temperature control
PCIe 5.0 Support:
- Native 12VHPWR connector (600W capable)
- Ready for NVIDIA RTX 4000/5000 series and next-gen GPUs

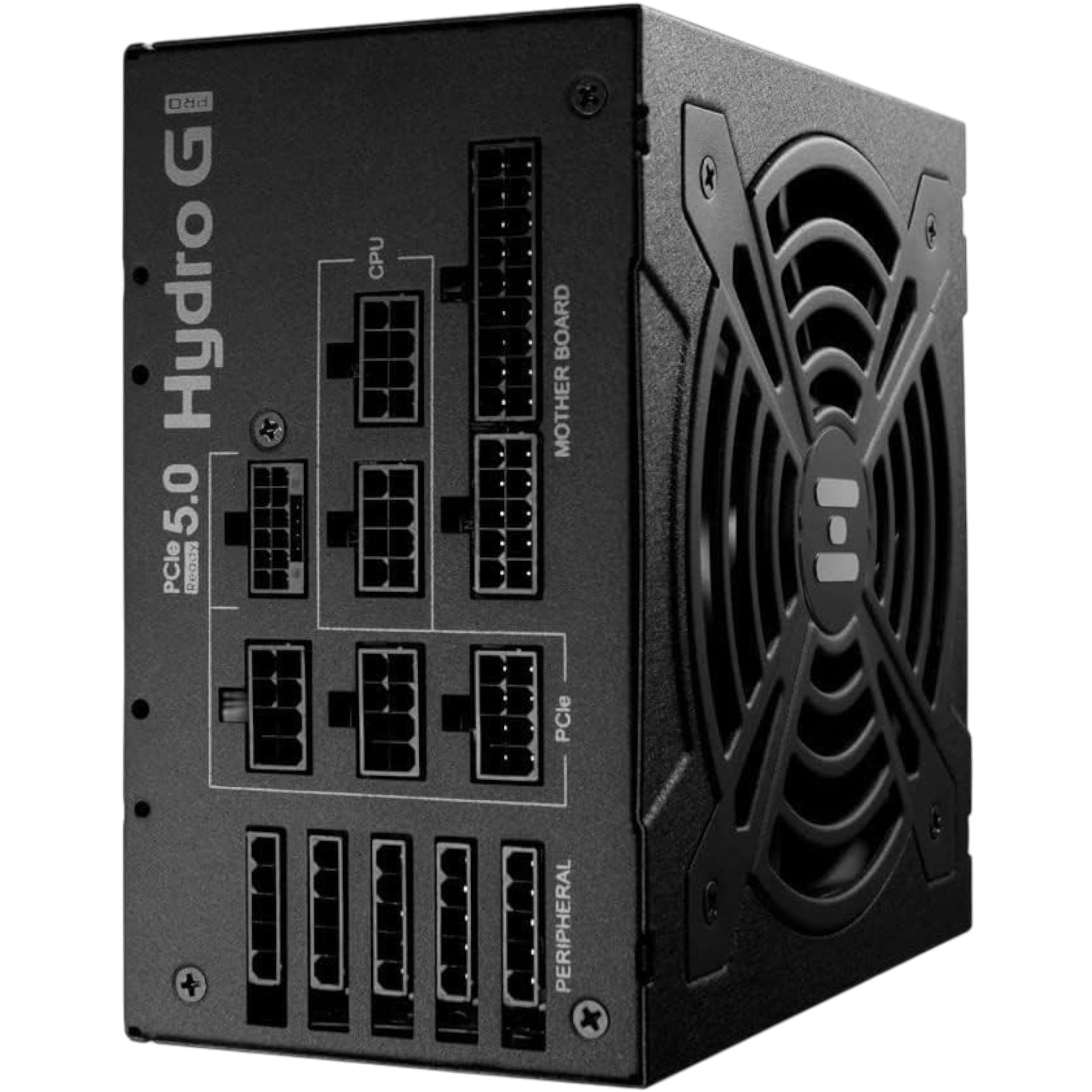

Connectors:
- 1x 24-pin ATX (20+4 pin)
- 2x 8-pin EPS (4+4 pin) for CPU
- 2x 12VHPWR (16-pin PCIe 5.0)
- 8x PCIe 6+2 pin (for GPUs)
- 12x SATA connectors
- 4x Molex connectors
- 1x Floppy connector
Protection Features:
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- OPP (Over Power Protection)
- SCP (Short Circuit Protection)
- OTP (Over Temperature Protection)
- OCP (Over Current Protection)
- SIP (Surge & Inrush Protection)
Electrical Specifications:
- Input Voltage: 100-240V (wide range)
- Input Frequency: 47-63Hz
- +12V Rail: Single rail (100A, 1200W)
- MTBF: >100,000 hours
Dimensions:
- 150mm (W) ├ù 160mm (D) ├ù 86mm (H)
- Standard ATX form factor
Cable Specifications:
- Premium black flat cables
- Braided 12VHPWR cable
- Cable length: 650-750mm (GPU cables)
Components:
- 100% Japanese capacitors
- LLC resonant + DC-DC design
Compliance:
- Safety: CE, CB, TUV, FCC, RCM, CCC
- Environmental: RoHS, ErP Lot 6
Warranty: 10 years limited warranty
