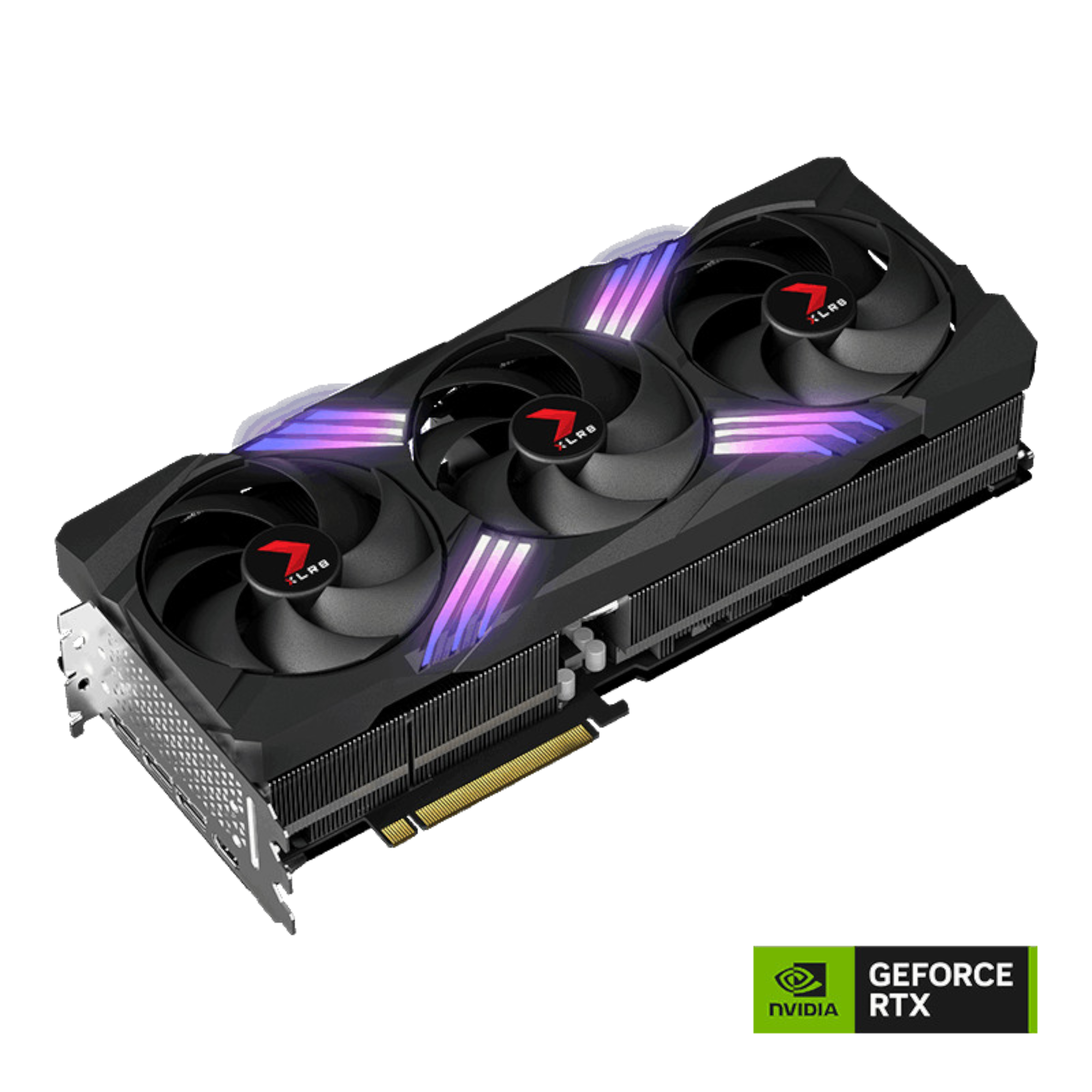

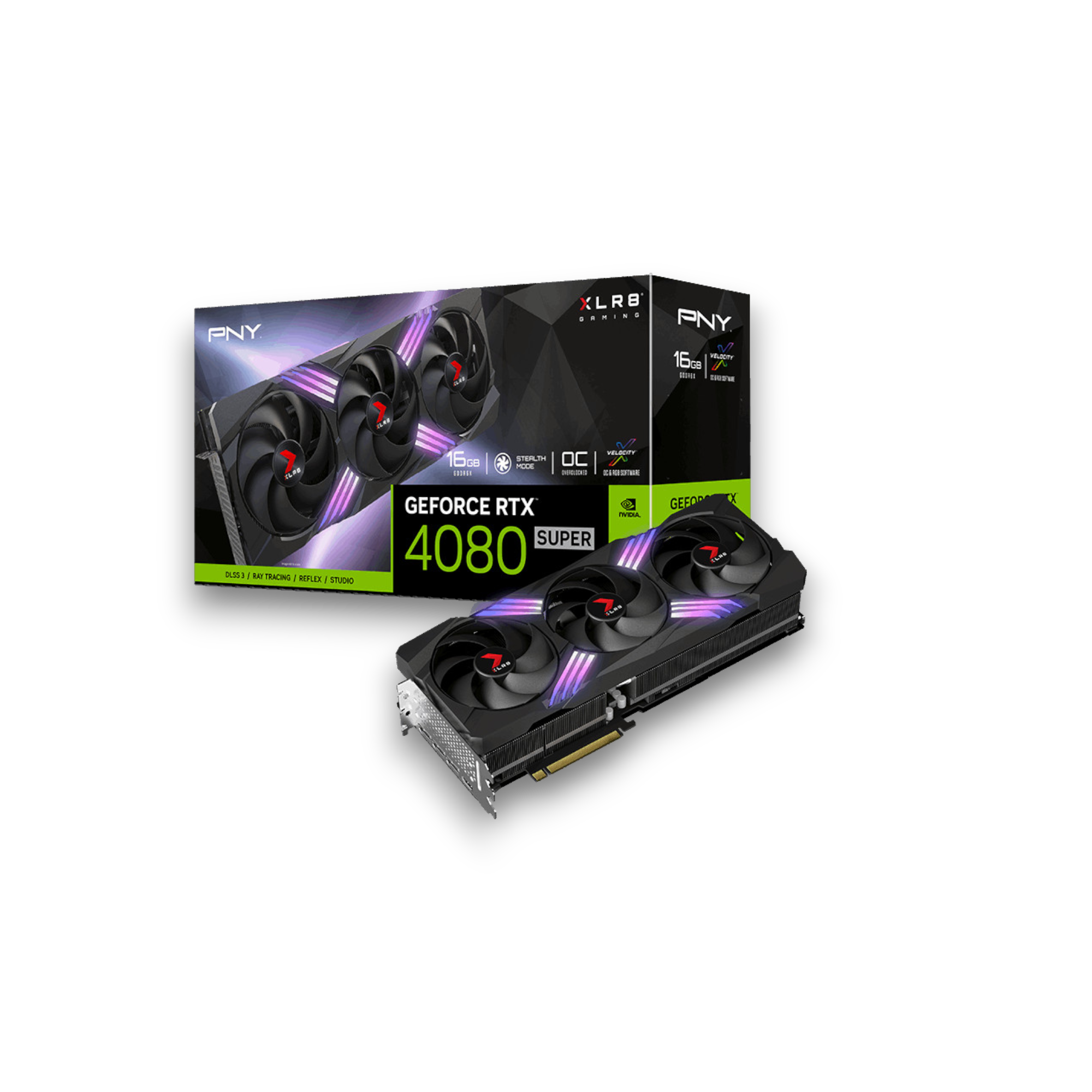

PNY GeForce RTX 4080 SUPER 16GB XLR8

Specifications

• Model Number: VCG4080S16TFXXPB1-O

• GPU Architecture: NVIDIA Ada Lovelace (AD103-400-A1)

• CUDA Cores: 10,240

• Base Clock Speed: 2,295 MHz

• Boost Clock Speed: 2,595 MHz

• Memory:

  • Type: GDDR6X
  • Size: 16 GB
  • Interface: 256-bit
  • Memory Speed: 23 Gbps
  • Memory Bandwidth: 736 GB/s

• Power Requirements:

  • Total Board Power (TDP): 320 W
  • Power Connectors: 16-pin (One 16-pin to Three 8-pin)

• Display Outputs:

  • 3 × DisplayPort 1.4a
  • 1 × HDMI 2.1

• Maximum Resolution: 7680 x 4320 @ 120Hz (Digital)

• PCI Express Interface: PCIe 4.0 x16

• Card Dimensions: 13.06" x 5.42" x 2.8" (3.5-slot)

• Cooling System:

  • Triple-fan VERTO EPIC-X design
  • RGB lighting support

• Additional Features:

  • DLSS 3 support
  • Ray Tracing (RT) and Tensor Cores for enhanced graphics and AI performance
  • Not compatible with NVIDIA NVLink SLI
