Thermalright Elite Vision 360 ARGB

Cooler Type: All-in-One (AIO) Liquid CPU Cooler
Radiator Size: 360mm (uses 3 x 120mm fans)
Radiator Dimensions: 397mm (L) x 120mm (W) x 27mm (H)
Radiator Material: Aluminum
Pump Dimensions: 66mm x 66mm x 63mm (Cold header)
Pump Voltage: DC 12V
Pump Connector: 4-Pin PWM
Fans Included: 3 x 120mm Thermalright TL-K12 PWM ARGB Fans
Fan Dimensions: 120mm x 120mm x 25mm
Fan Speed: 2150 RPM ± 10% (MAX)
Fan Airflow: 69 CFM (Max)
Fan Static Pressure: 2.87 mmH2O (Max)
Fan Noise Level: ≤27 dBA (Max)
Fan Connector: 4-Pin PWM (for speed control)
Fan Bearing Type: S-FDB Bearing V2 (Fluid Dynamic Bearing)

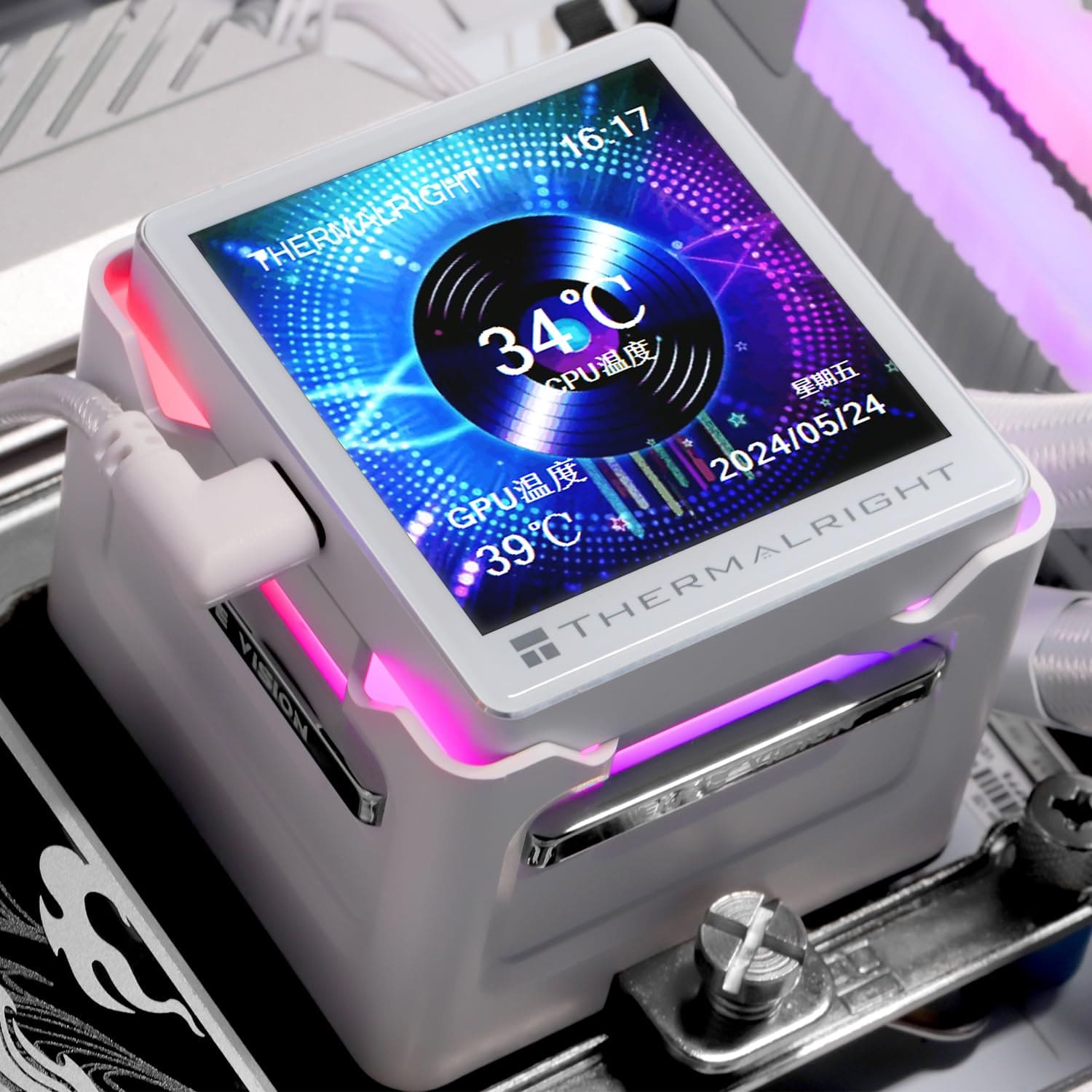

LCD Display:
- Type: IPS LCD Screen
- Size: 2.73 inches (some sources indicate 3.95 inches with 480x480 resolution for a "Hyper Vision" model, but for "Elite Vision" it's consistently 2.73" at 320x320 resolution)
- Resolution: 320 x 320 pixels
- Features: Magnetic suction for quick installation/removal, displays CPU/GPU temperature, frequency, usage, custom GIFs, and videos.
RGB Lighting: Addressable RGB (ARGB) on the fans and an ARGB ring light on the side of the cold head (pump block).
- ARGB Connector: 5V 3-Pin ARGB (Note: DOES NOT support 12V 4-Pin ARGB).
Tubing: Protected by polymer sleeves, 400mm length.
Compatibility (CPU Sockets):
- Intel: LGA 1150/1151/1155/1156/1200/1700/1851/2011/2066
- AMD: AM4/AM5
Software Support: Thermalright software for LCD display customization.
Available Colors: Black, White
