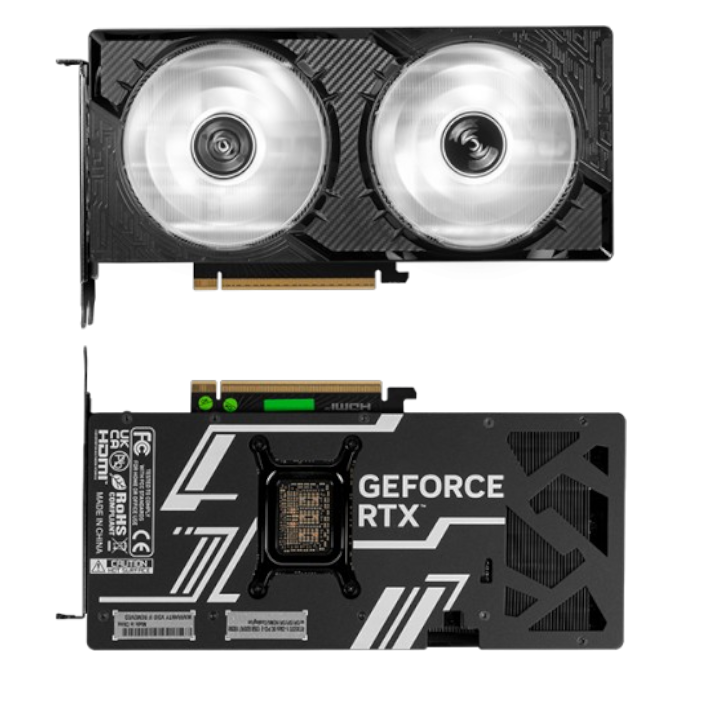

GALAX GeForce RTX 5070 1-Click OC 12GB (Black)

🧩 General Specifications

• GPU Model: NVIDIA GeForce RTX 5070
• Architecture: Blackwell 2.0 (GB205)
• CUDA Cores: 6144
• Tensor Cores: 192
• RT Cores: 48
• SM Count: 48
• Manufacturing Process: TSMC 4N (5nm)
• Transistor Count: 31.1 billion
• Die Size: 263 mm²

⏱️ Clock Speeds

• Base Clock: 2325 MHz
• Boost Clock: 2527 MHz
• 1-Click OC Clock: 2542 MHz (via Xtreme Tuner Plus)

🧠 Memory

• Memory Capacity: 12 GB GDDR7
• Memory Interface: 192-bit
• Memory Speed: 28 Gbps
• Memory Bandwidth: 672 GB/s

🎮 Performance

• FP32 Performance: 31.05 TFLOPS
• Pixel Fillrate: 202.2 GPixel/s
• Texture Fillrate: 485.2 GTexel/s

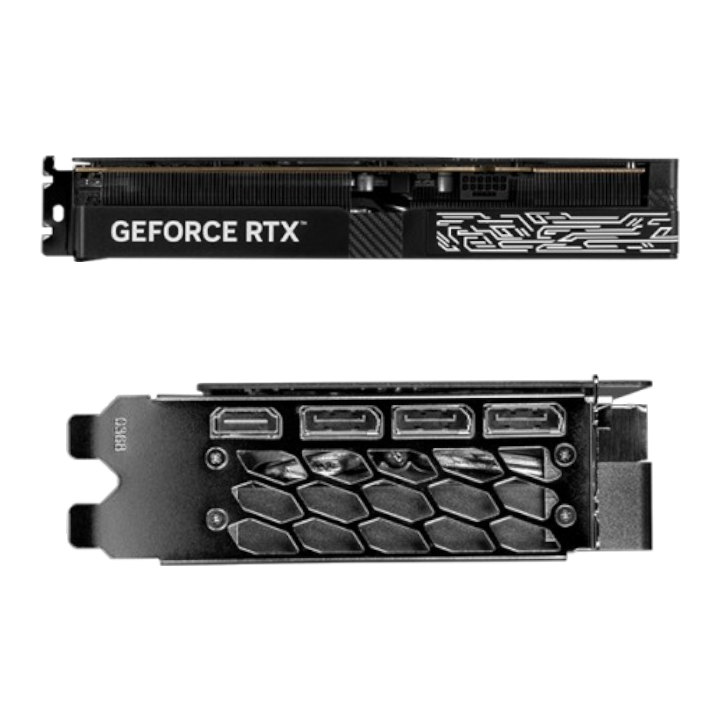

📺 Display Outputs

• DisplayPort: 3 × DisplayPort 2.1b
• HDMI: 1 × HDMI 2.1b
• Maximum Digital Resolution: 7680 × 4320

🔌 Power & Cooling

• TDP: 250 W
• Recommended PSU: 600 W
• Power Connector: 1 × 16-pin (adapter to 2 × 8-pin included)
• Cooling System: Dual 92mm WINGS 3.0 fans with fan-stop feature

📐 Physical Dimensions

• With Bracket: 252 × 131 × 40.6 mm
• Without Bracket: 240 × 115.5 × 39.6 mm
• Slot Width: Dual-slot
• Weight: 833 g

⚙️ Features

• PCI Express: PCIe 5.0 x16
• DirectX Support: 12 Ultimate
• OpenGL Support: 4.6
• Vulkan Support: 1.4
• NVIDIA Technologies: DLSS 4, G-SYNC, GPU Boost, Studio Drivers
• Operating System Support: Windows 10/11 64-bit
• Software: Xtreme Tuner Plus for overclocking and LED control

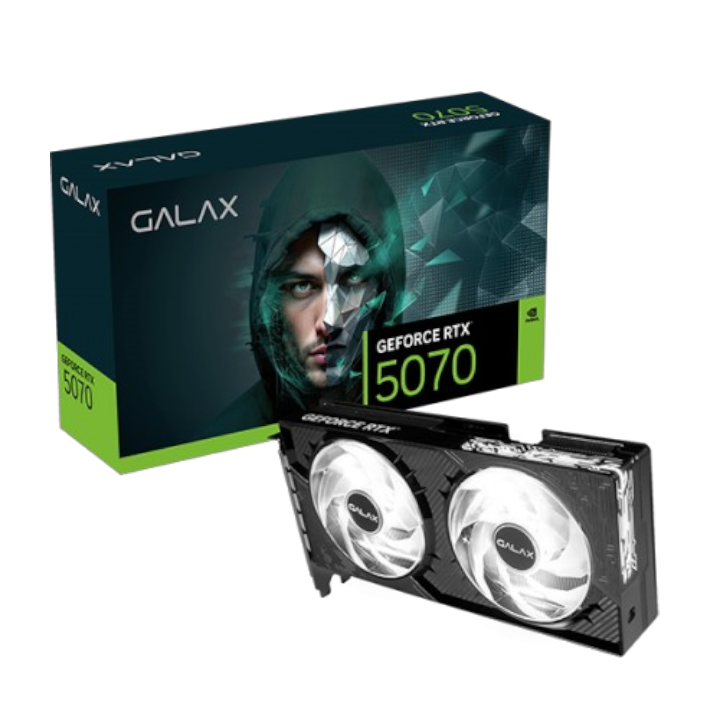

📦 Package Contents

• Graphics Card: GALAX GeForce RTX 5070 1-Click OC 12GB
• Accessories: PCIe 1 × 16-pin to 2 × 8-pin adapter
