ASUS Prime RTX 5060 Ti 16GB GDDR7 3-Fan OC Edition

Graphic Engine: NVIDIA® GeForce RTX™ 5060 Ti
AI Performance: Up to 772 TOPs
Bus Standard: PCI Express 5.0 x8
OpenGL: OpenGL®4.6
Video Memory: 16GB GDDR7
Engine Clock (Boost):
- OC mode: 2647MHz
- Default mode: 2617MHz (Boost Clock)
CUDA Cores: 4608
Memory Speed: 28 Gbps
Memory Interface: 128-bit
Digital Max Resolution: 7680 x 4320

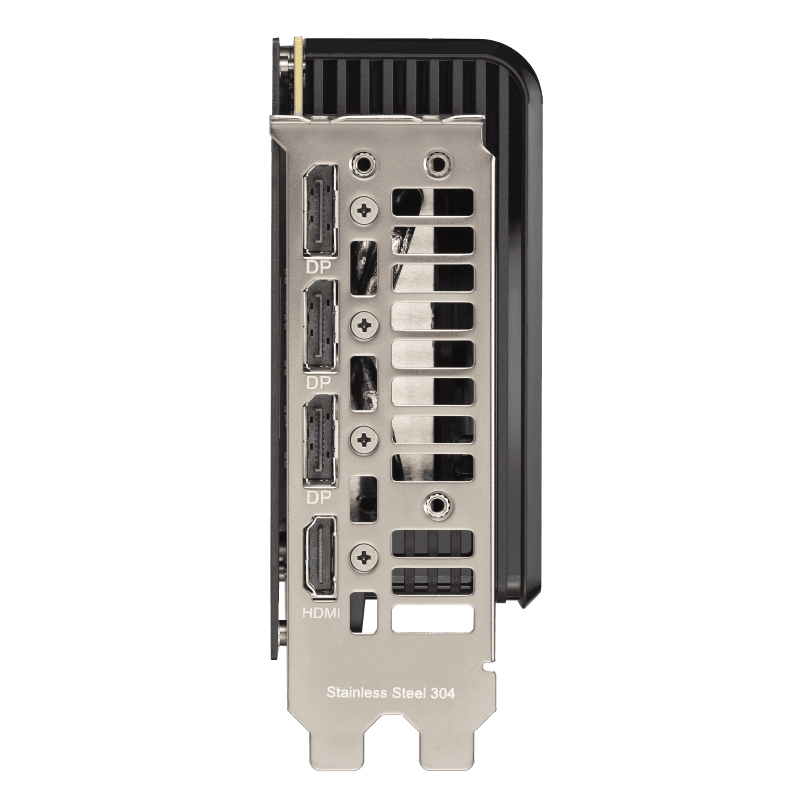

Interface:
- 1 x Native HDMI 2.1b
- 3 x Native DisplayPort 2.1b
HDCP Support: Yes (2.3)
Maximum Display Support: 4
NVlink/Crossfire Support: No
Recommended PSU: 550W
Power Connectors: 1 x 8-pin
Slot: 2.5 Slot
Dimensions (L x W x H): 304 mm x 120 mm x 50 mm
Cooling System:
- Triple Axial-tech Fans: Features a smaller hub for longer blades and a barrier ring to increase downward air pressure.
- 0dB Technology: Fans stop completely when GPU temperature is below 50°C for silent operation during light tasks.
- Dual Ball Fan Bearings: Offer enhanced durability and lifespan.
- Vented Backplate: Large cutouts on the aluminum backplate for improved heat dissipation.
- MaxContact Design: Improves heat transfer efficiency between the GPU die and the heatsink.
Features:
- NVIDIA Blackwell Architecture: The underlying GPU architecture.
- DLSS 4: Includes Multi Frame Generation, enhanced Ray Reconstruction, and Super Resolution powered by 5th-Gen Tensor Cores.
- Dedicated Tensor Cores: 5th Gen Tensor Cores for AI performance.
- Dedicated RT Cores: 4th Gen RT Cores for ray tracing.
- NVIDIA Reflex 2 with Frame Warp: For game-winning responsiveness and reduced latency.
- NVIDIA App: Unified control center for drivers, game optimization, and more.
- Game Ready & Studio Drivers: Optimized drivers for gaming and creative applications.
- NVIDIA G-SYNC: For smooth, tear-free gaming.
- SFF-Ready: Despite its triple-fan design, its 2.5-slot profile makes it suitable for many Small Form Factor builds.
- Dual BIOS: Allows users to switch between Performance (P Mode) and Quiet (Q Mode) profiles.
- ASUS GPU Tweak III: Utility for monitoring, tuning, and overclocking the GPU.
- No RGB Lighting: Focuses on a clean and understated aesthetic.
