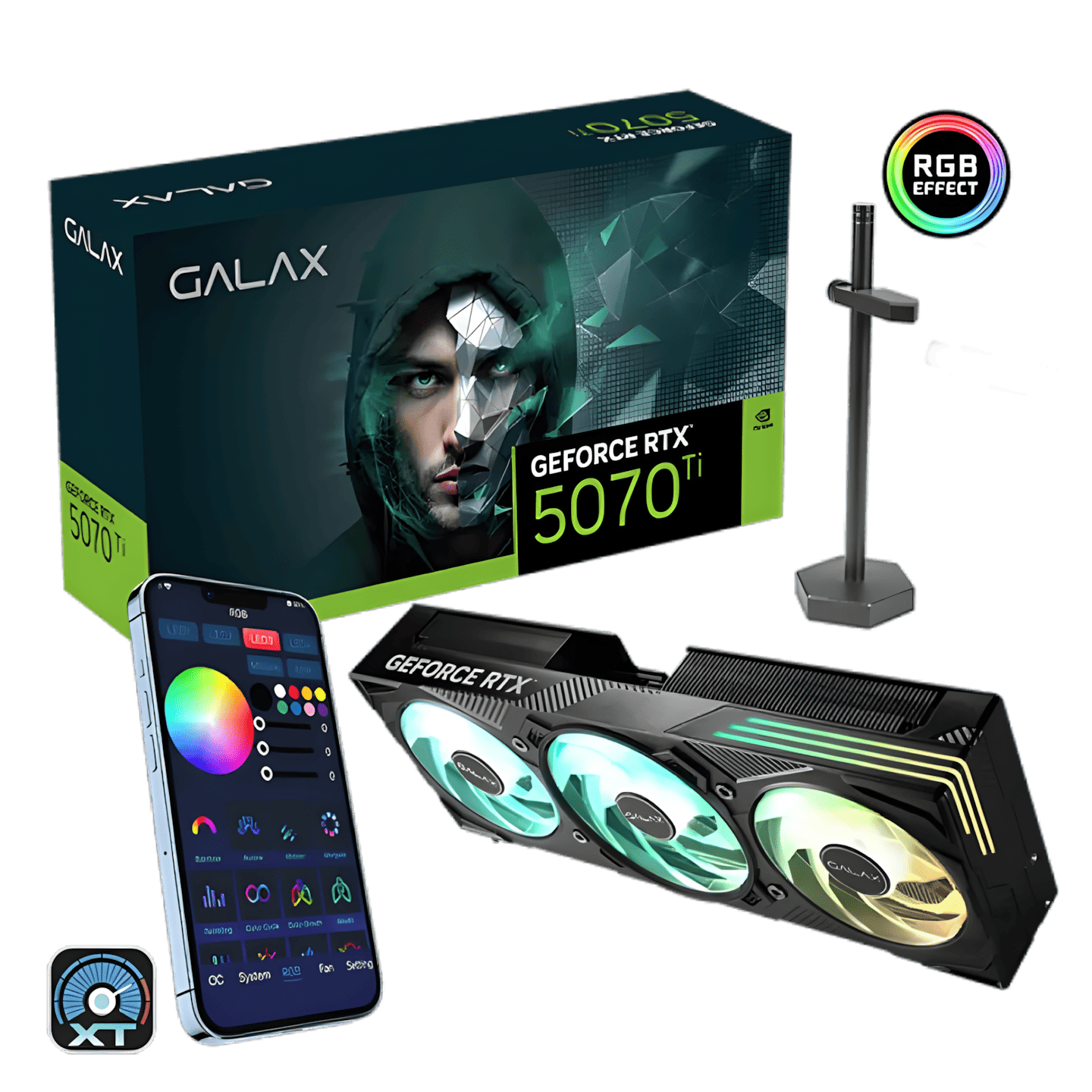

Galax Rtx 5070 Ti EX Gamer 1-Click OC 16GB GDDR7

GPU Architecture: NVIDIA Blackwell (50 Series Generation)
CUDA Cores: 8960
Memory: 16GB GDDR7
Memory Interface: 256-bit
Memory Speed: 28 Gbps (Effective)
Memory Bandwidth: 896 GB/sec
Boost Clock (Typical): 2497 MHz (can vary slightly, and "1-Click OC" through GALAX's Xtreme Tuner Plus software can push it higher, e.g., to 2512 MHz)
Interface: PCI Express 5.0 x16
Outputs:
- 3 x DisplayPort 2.1b
- 1 x HDMI 2.1b
Power Connectors: 1 x 16-pin (12VHPWR type, often comes with an adapter for 2 x 8-pin PCIe power connectors)
Total Graphics Power (TGP): 300 W (NVIDIA's reference TGP for this GPU)
Recommended PSU: 700W - 750W or higher, depending on overall system components.

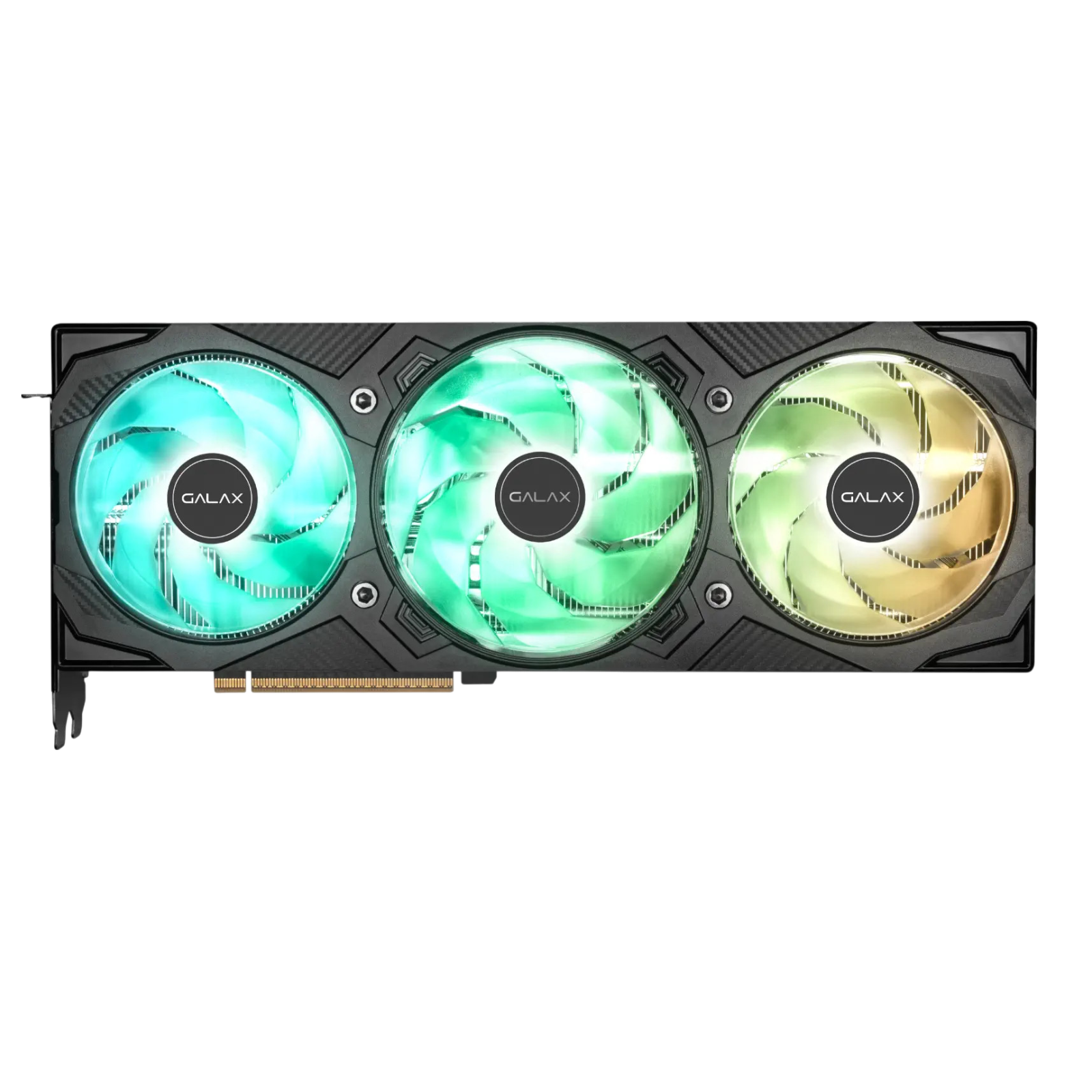

Cooling System: Custom triple-fan cooler (GALAX's WING 2.0 fans, often with fan stop @ idle feature).
Features:
- NVIDIA DLSS 4 (Deep Learning Super Sampling)
- 4th Gen Ray Tracing Cores
- 5th Gen Tensor Cores (for AI acceleration)
- NVIDIA Reflex (for low latency gaming)
- NVIDIA Studio (for creators)
- DirectX 12 Ultimate, OpenGL 4.6, Vulkan 1.4 support
- VR Ready
- GALAX 1-Click OC via Xtreme Tuner Plus software

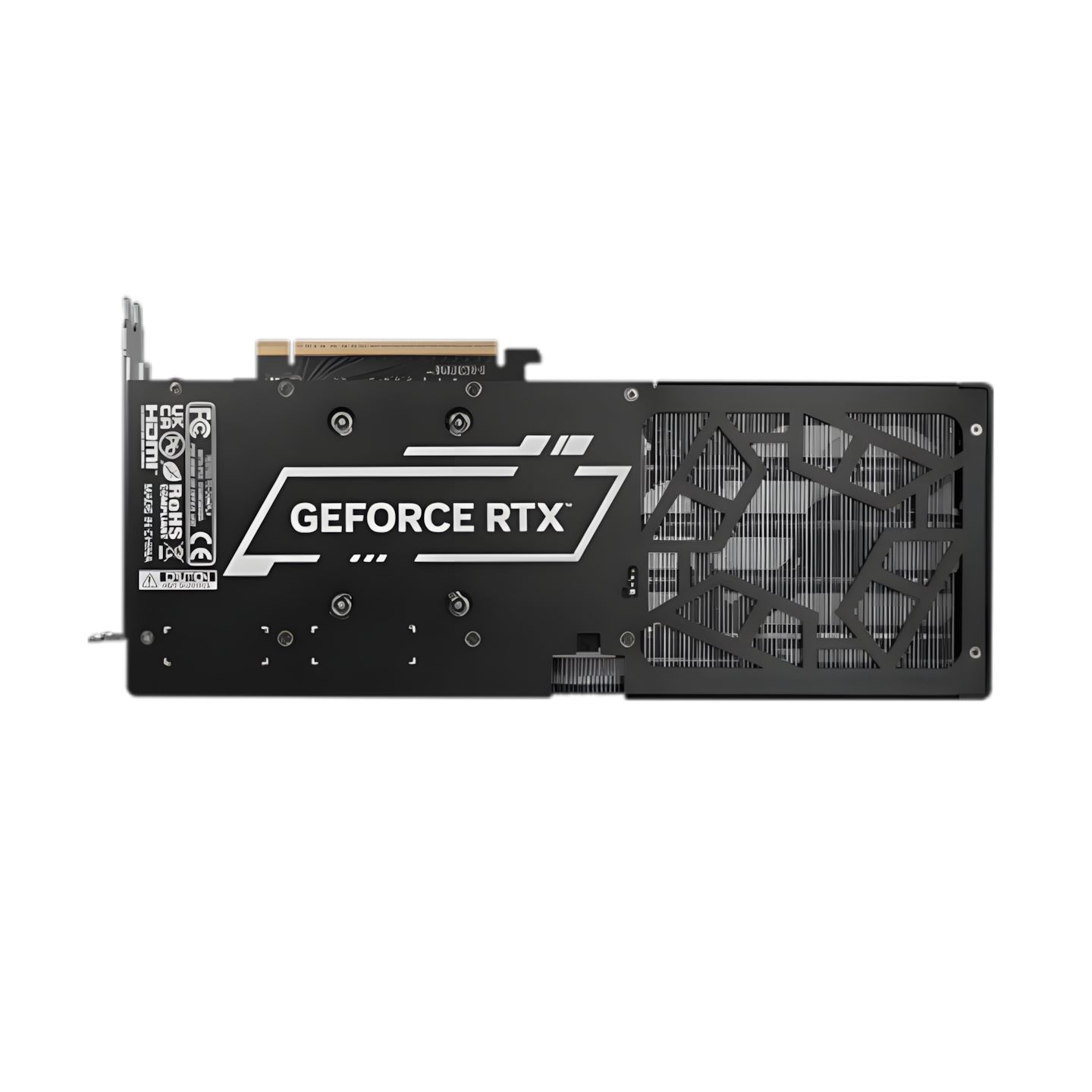

- Metal backplate for structural rigidity and heat dissipation.
Dimensions (Approximate with bracket): 334mm x 144mm x 52mm (may vary slightly between specific EX Gamer revisions).
Slot Width: Typically a 2.5-slot or 3-slot design.
