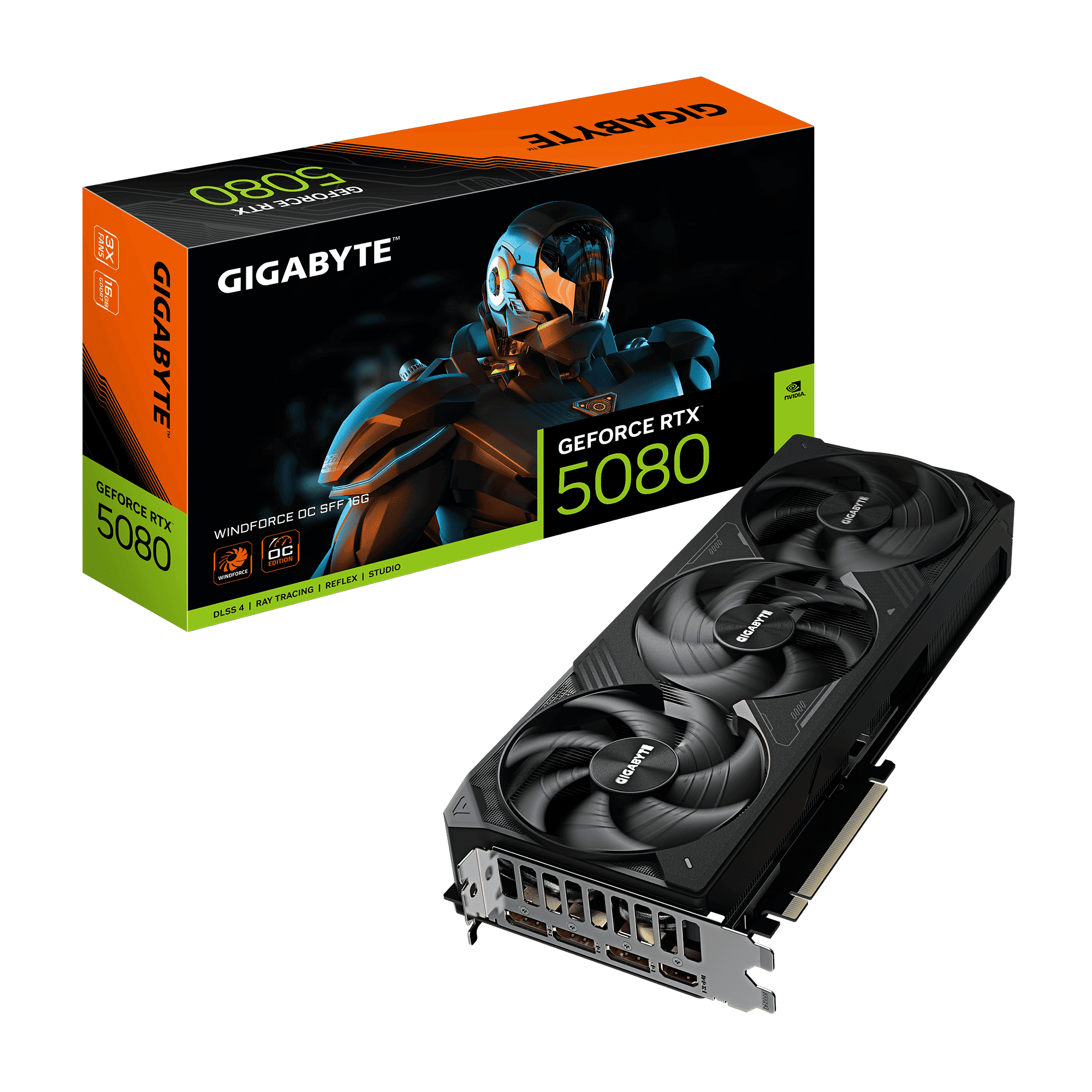

Gigabyte Rtx 5080 WINDFORCE Oc Sff 16GB

GPU Architecture: NVIDIA Blackwell (50 Series Generation)
CUDA Cores: 10752
Memory: 16GB GDDR7
Memory Interface: 256-bit
Memory Speed: 30 Gbps (Effective)
Memory Bandwidth: 960 GB/sec
Core Clock: 2670 MHz (Boost Clock - higher than NVIDIA's reference of 2617 MHz)
Interface: PCI Express 5.0 x16
Outputs:
- 3 x DisplayPort 2.1b
- 1 x HDMI 2.1b
Power Connectors: 1 x 16-pin (12V-2x6 / 12VHPWR type, typically includes an adapter for 3 x 8-pin PCIe power connectors for broader compatibility)
Total Graphics Power (TGP): 360W
Recommended PSU: 850W or higher, depending on other system components.
Cooling System: GIGABYTE WINDFORCE 3X cooling system, featuring:
- Multiple "Hawk" fans with alternate spinning for optimized airflow.
- Large vapor chamber and composite copper heat pipes that directly contact the GPU and VRAM.
- "Screen Cooling" (extended heatsink fins allowing airflow through the card).
- Server-grade thermal conductive gel for efficient heat transfer from critical components.
- 3D Active Fan (fans remain off during low load for silent operation).
Features:
- NVIDIA DLSS 4 with Multi Frame Generation
- 4th Gen Ray Tracing Cores
- 5th Gen Tensor Cores (for AI acceleration)
- NVIDIA Reflex 2 with Frame Warp (for low latency gaming)
- NVIDIA Studio (for creators)
- Dual BIOS (Performance / Silent modes)
- NVIDIA SFF-ready compliance for compact builds.

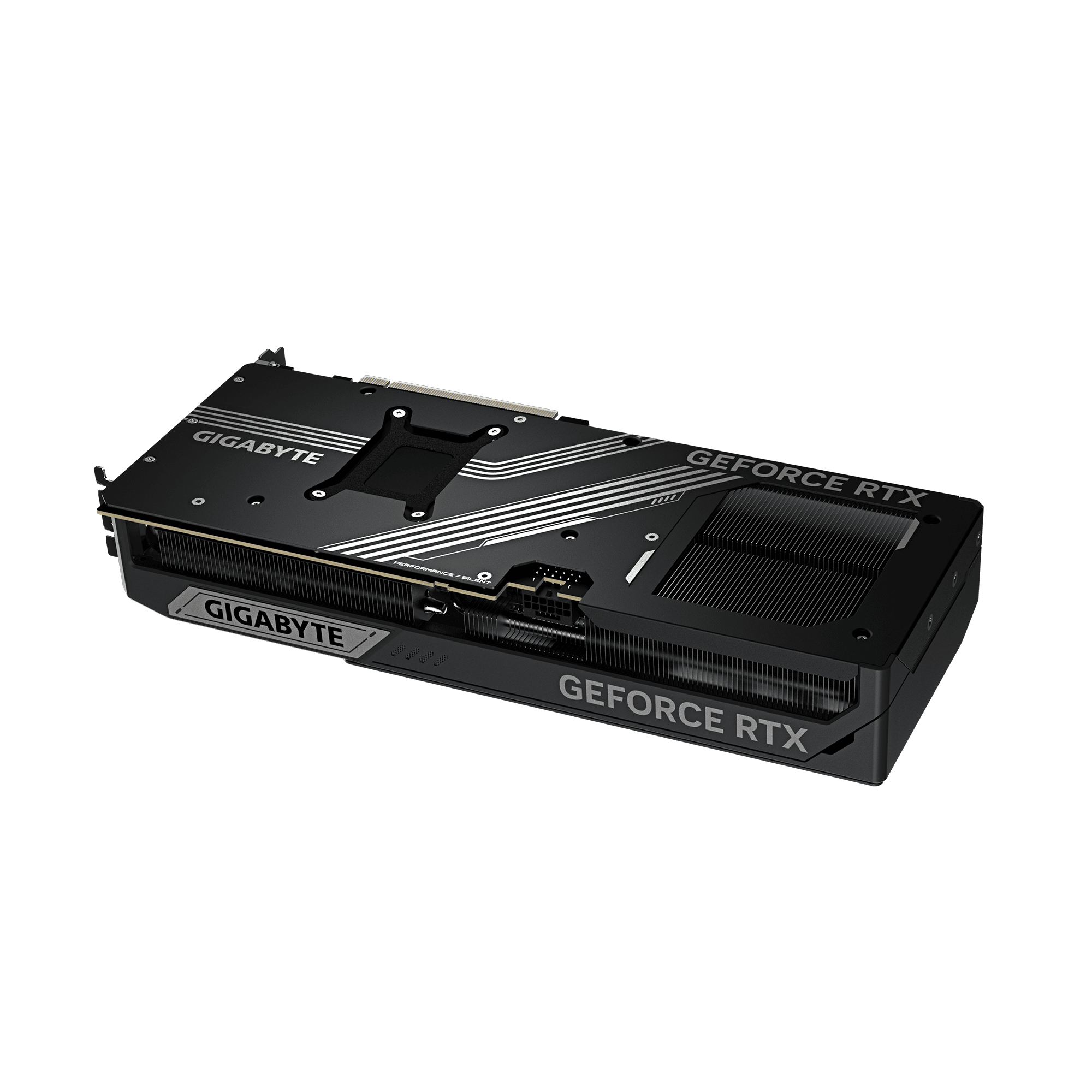

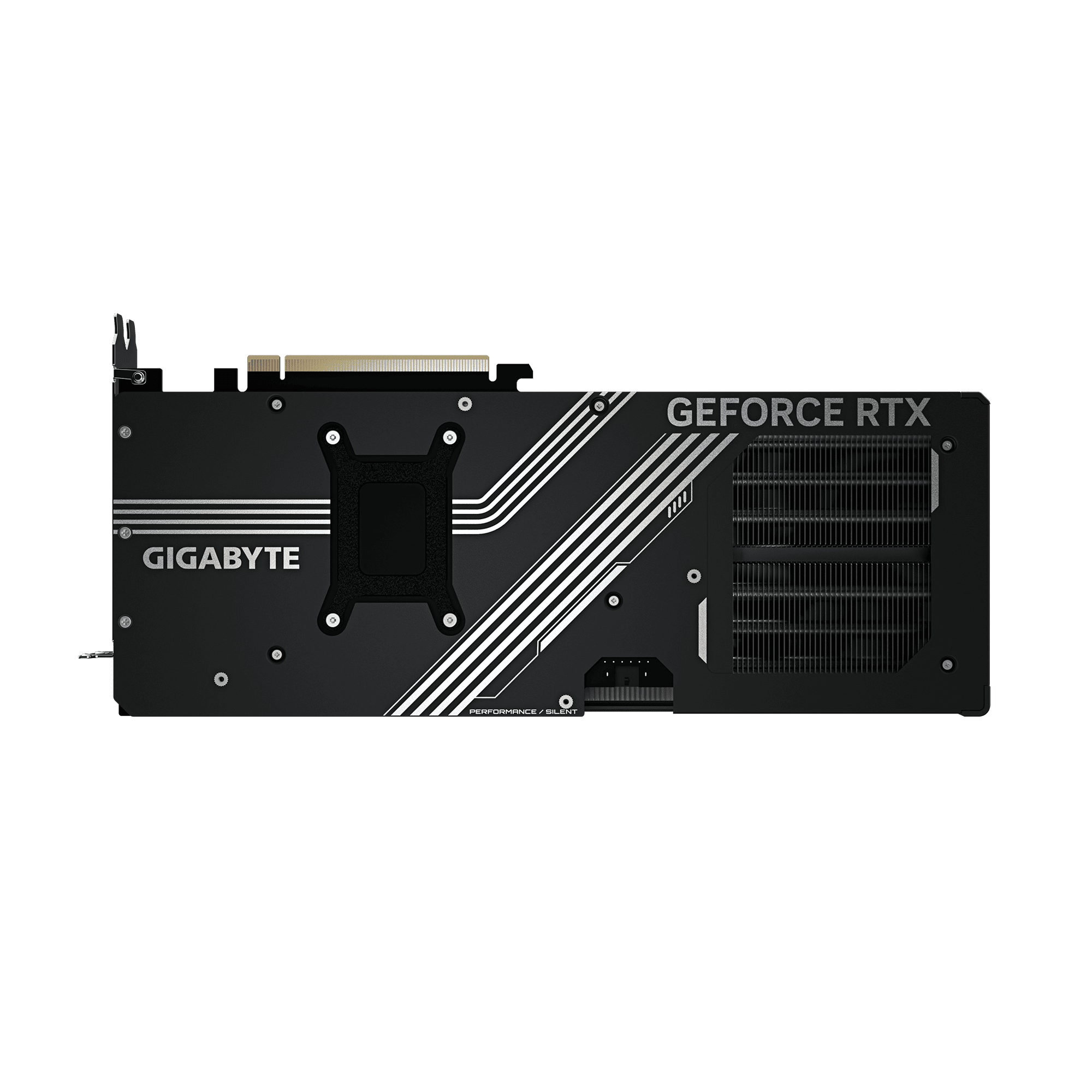

- Reinforced metal backplate for structural rigidity.
- Ultra Durable components (highest-grade metal chokes, solid capacitors, 2oz copper PCB).
- Versatile VGA holder accessory included.
Dimensions (L x W x H): 304 mm x 126 mm x 50 mm
Slot Width: 2.5-slot design (occupies approximately 3 expansion slots).
