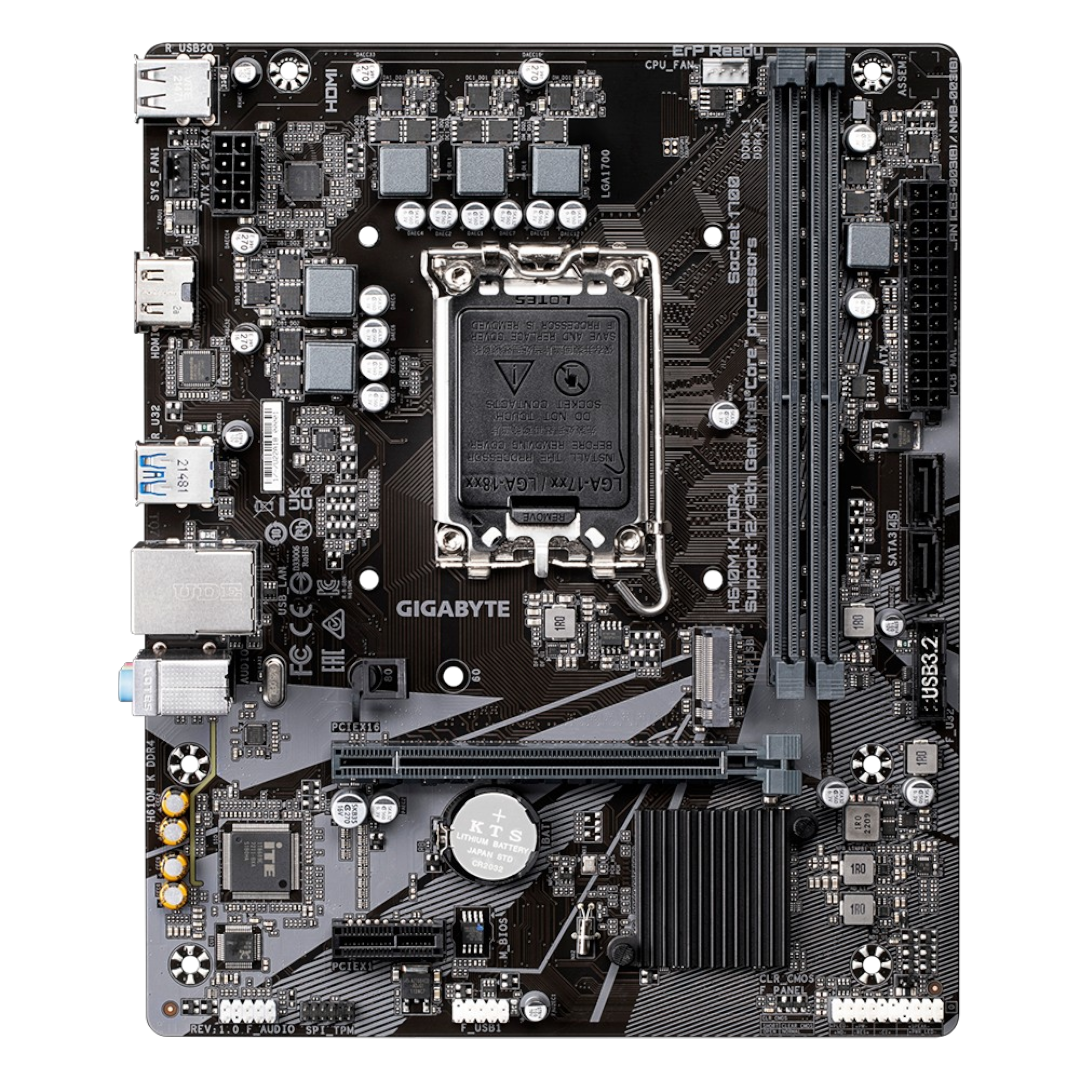

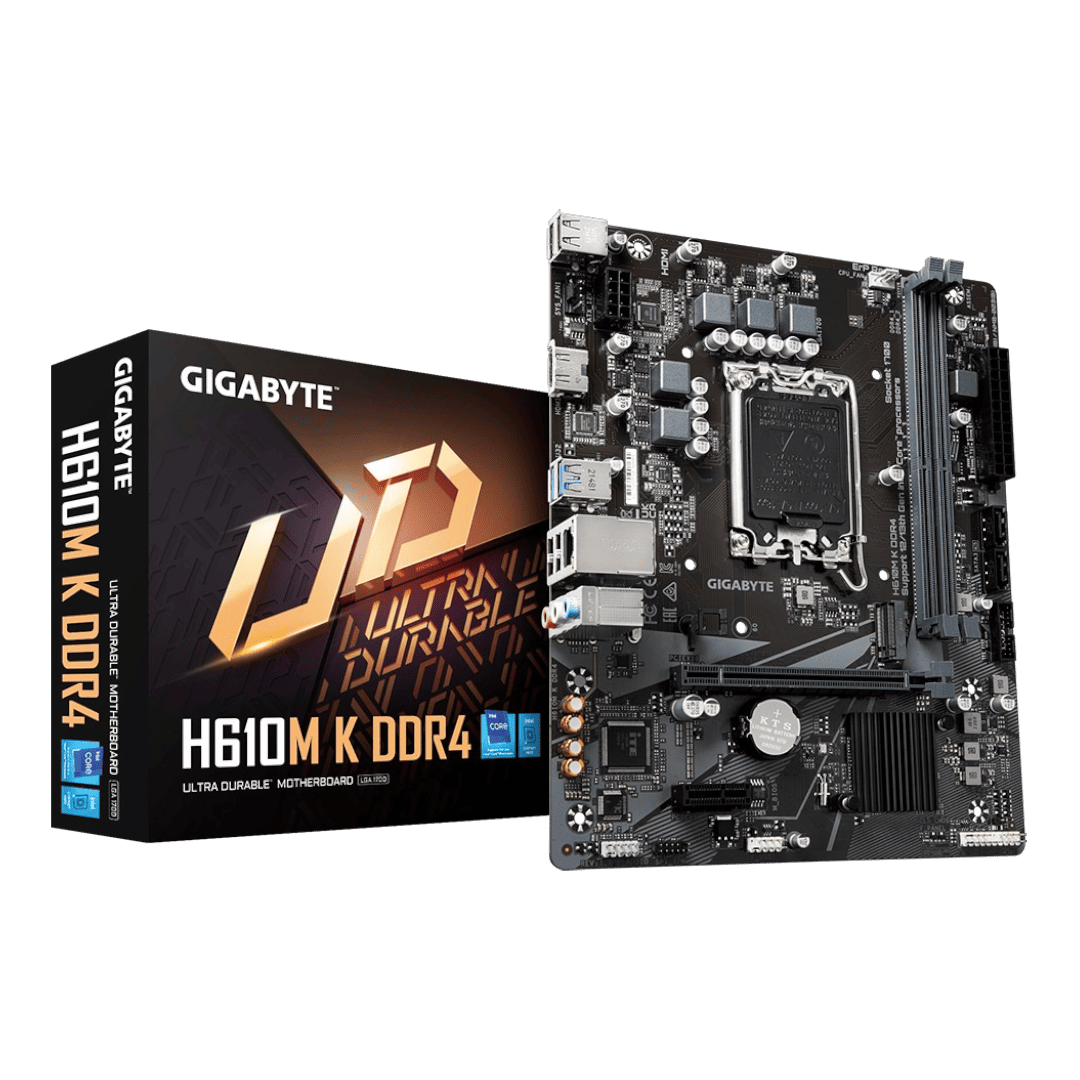

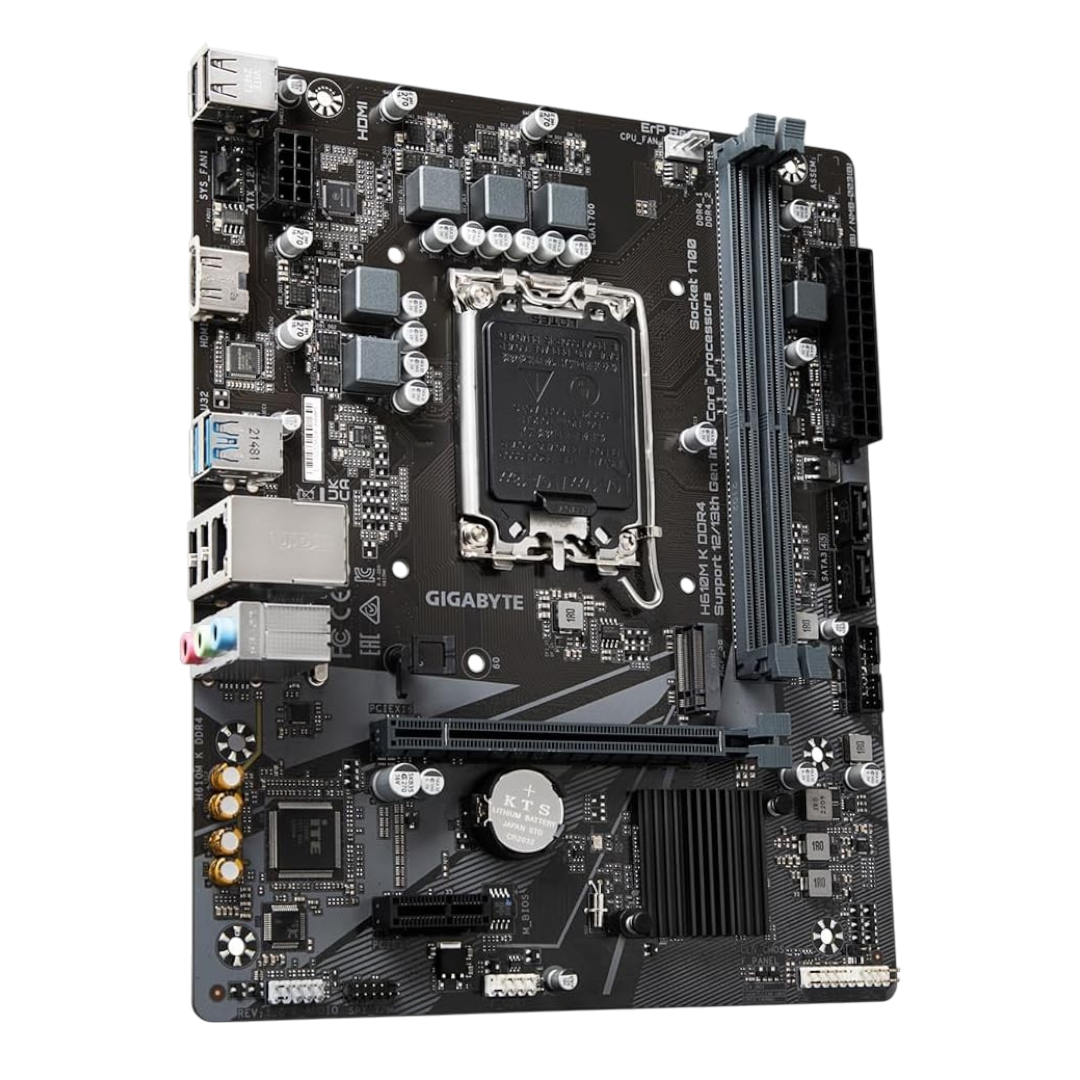

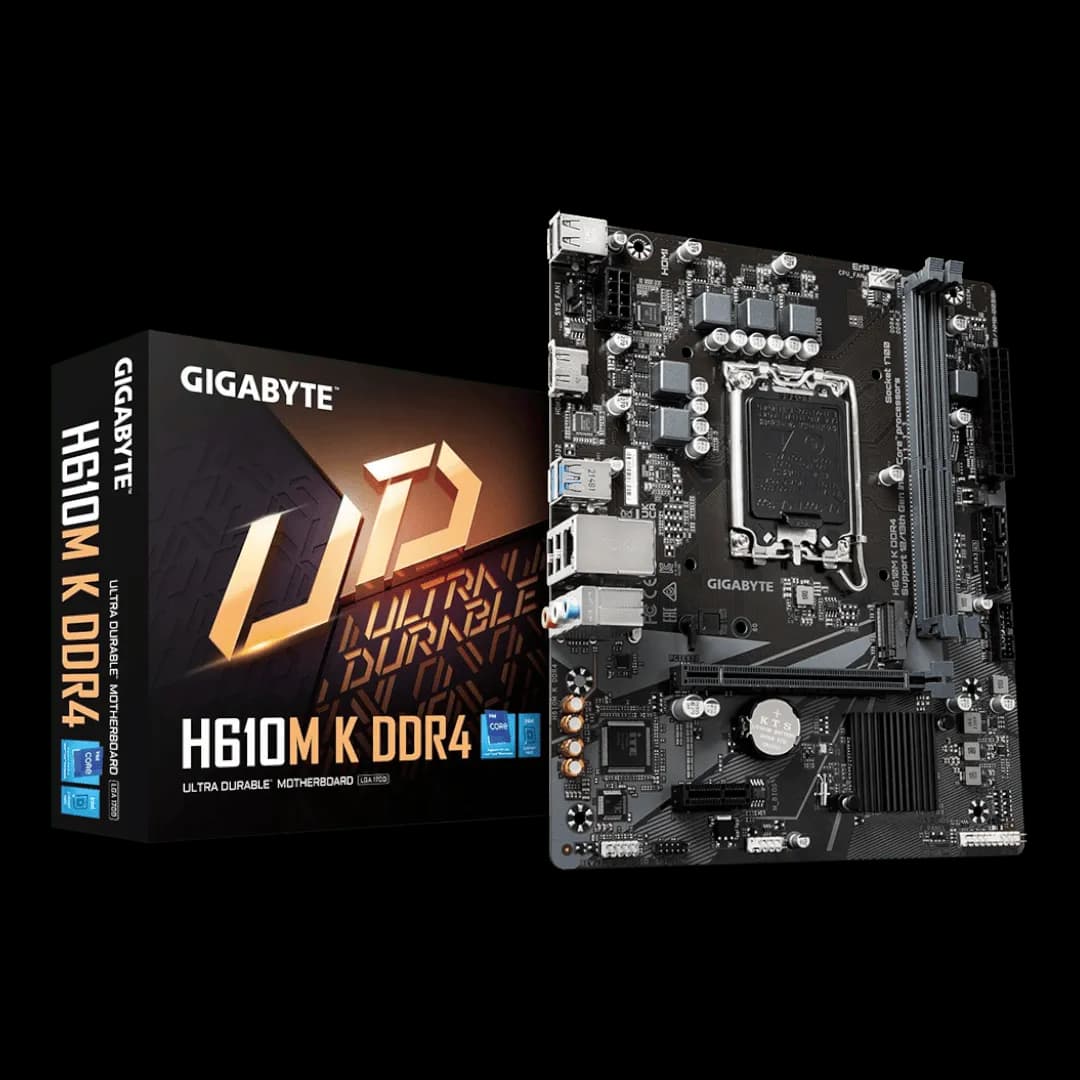

Gigabyte H610M K DDR4 | Joker Center

CPU Socket: LGA 1700
Chipset: Intel H610 Express Chipset
CPU Compatibility: Supports 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors.
Memory:
- Type: DDR4
- Slots: 2 x DDR4 DIMM sockets
- Max Capacity: Up to 64 GB (supports 32 GB single DIMM capacity)
- Supported Speeds: DDR4 3200/3000/2933/2666/2400/2133 MT/s
- Architecture: Dual Channel
- Features: Supports ECC Un-buffered DIMM 1Rx8/2Rx8 (operates in non-ECC mode), non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16, and Extreme Memory Profile (XMP) modules.
Expansion Slots:
- 1 x PCI Express x16 slot (PCIe 4.0, runs at x16, from CPU)
- 1 x PCI Express x1 slot (PCIe 3.0, runs at x1, from Chipset)
Storage:
- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
- 2 x SATA 6Gb/s connectors
USB Ports (from Chipset):

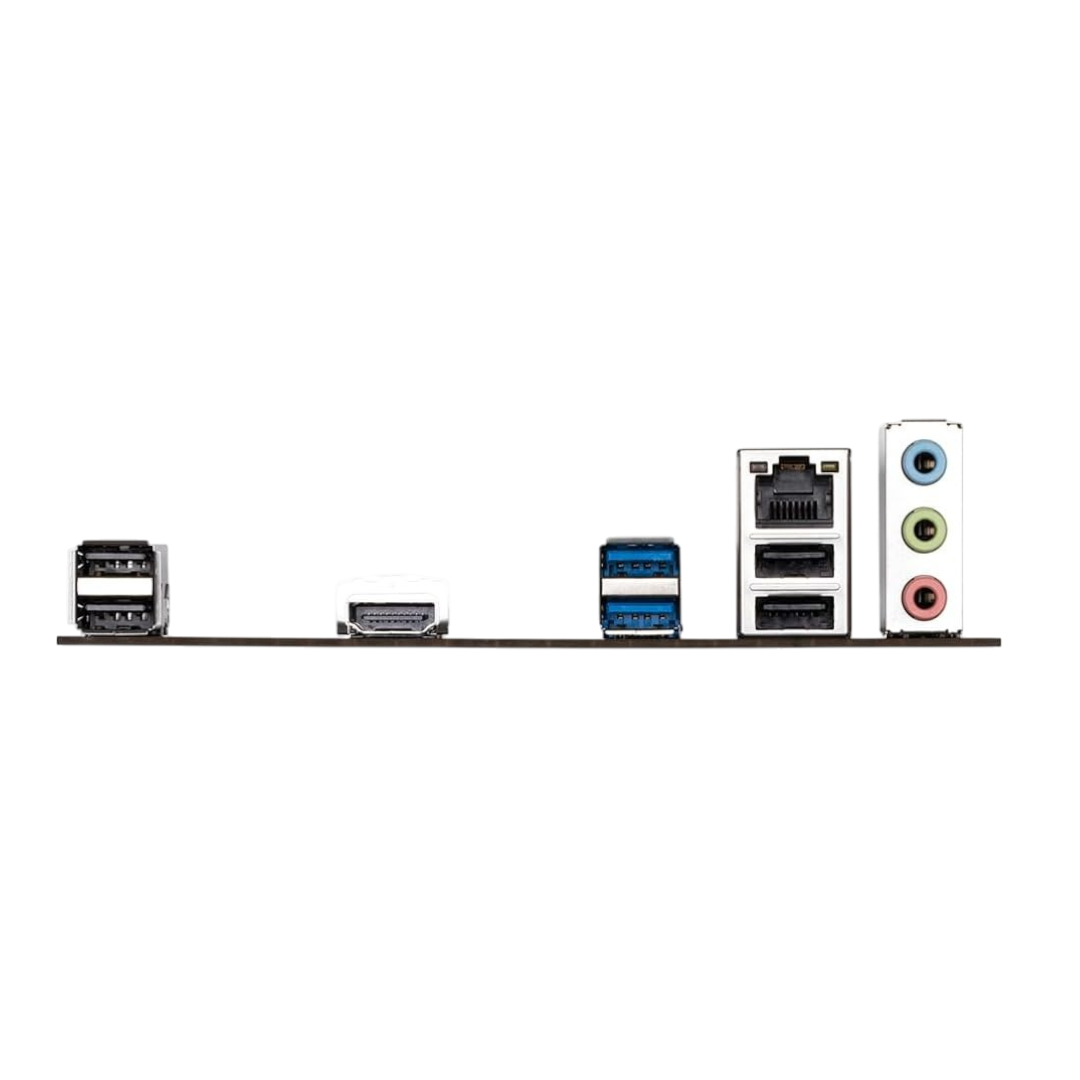

- Rear Panel: 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports
- Internal Headers: 1 x USB 3.2 Gen 1 header (for 2 ports), 1 x USB 2.0/1.1 header (for 2 ports)
Video Output:
- 1 x HDMI port (supports up to 4096x2160@60 Hz; supports HDMI 2.1 version and HDCP 2.3)
Audio:
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel support
- Audio Noise Guard and High-End Audio Capacitors
LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps) with bandwidth management.
Form Factor: Micro ATX Form Factor (22.6cm x 18.5cm)
Power Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector (solid pin design)
Cooling Features: Smart Fan 6 (multiple temperature sensors, hybrid fan headers with FAN STOP, precision control, dual curve mode, manual input, EZ Tuning, fan curve profiles saved in BIOS ROM).
BIOS: 1 x 128 Mbit flash, licensed AMI UEFI BIOS.
Operating System Support: Windows 11 64-bit, Windows 10 64-bit.
