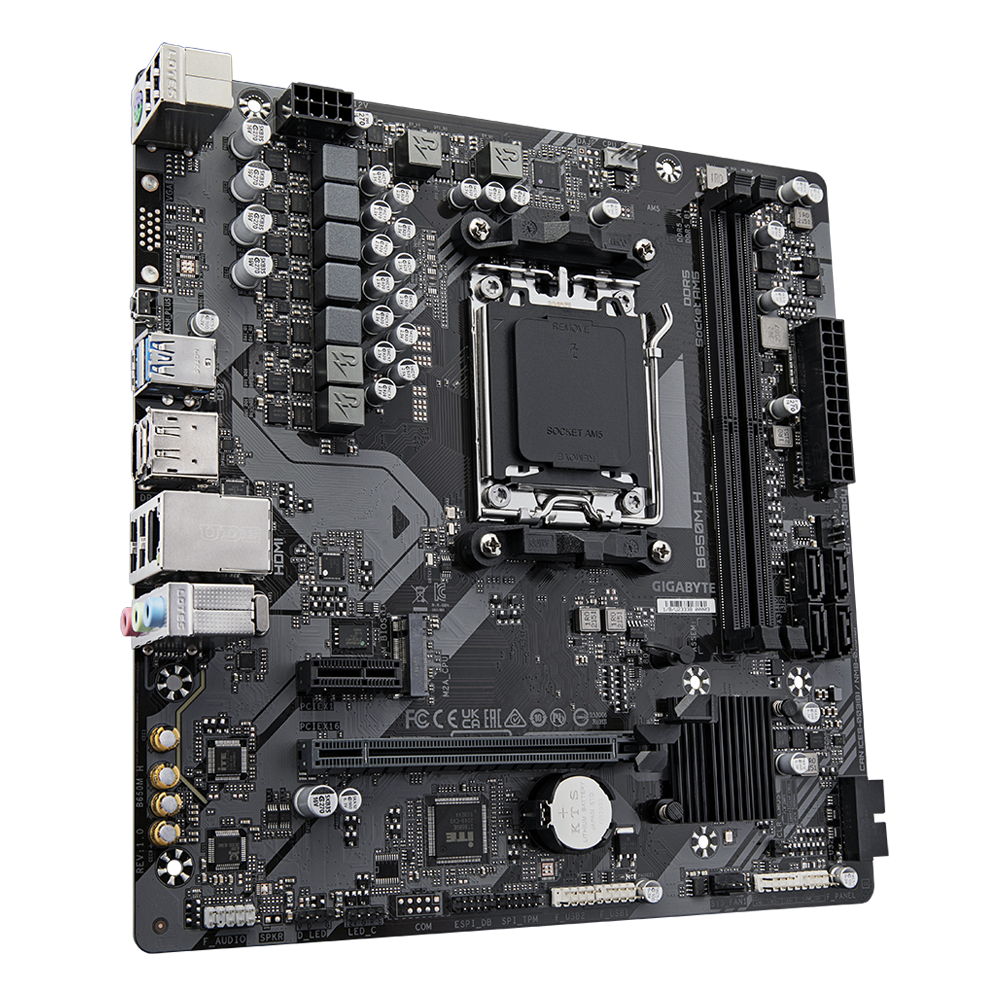

Gigabyte B650M H | Joker Center

CPU Socket: AMD Socket AM5
Supported CPUs: AMD Ryzen™ 7000, 8000, and 9000 Series Processors
Chipset: AMD B650
Form Factor: Micro ATX (23.0cm x 22.5cm)
VRM Solution: 5+2+2 Phases Digital VRM Solution
Memory:
- Type: Dual Channel DDR5
- DIMM Slots: 2 x SMD DIMM sockets
- Maximum Memory: Up to 128 GB (with 64 GB single DIMM capacity supported by newer BIOS versions)
- Supported Speeds: DDR5 4400 MT/s up to 6400(OC) / 7200(OC) MT/s
- Features: Supports AMD EXPO™ & Intel® XMP Memory Modules
Storage:
- 1 x M.2 connector (PCIe 4.0 x4/x2) for NVMe SSDs, integrated in the CPU.
- 4 x SATA 6Gb/s connectors.
- Supports RAID 0, RAID 1, and RAID 10 for NVMe and SATA storage devices.
Expansion Slots:
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU (PCIe 4.0, modes vary by CPU).
- 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0.
Graphics Output (for CPUs with integrated graphics):
- 1 x DisplayPort (DP 1.4, max. resolution 3840x2160@144 Hz)
- 1 x HDMI port (HDMI 2.1, max. resolution 4096x2160@60 Hz)
LAN (Networking): Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Audio: Realtek® Audio CODEC (High Definition Audio, 2/4/5.1/7.1-channel support)

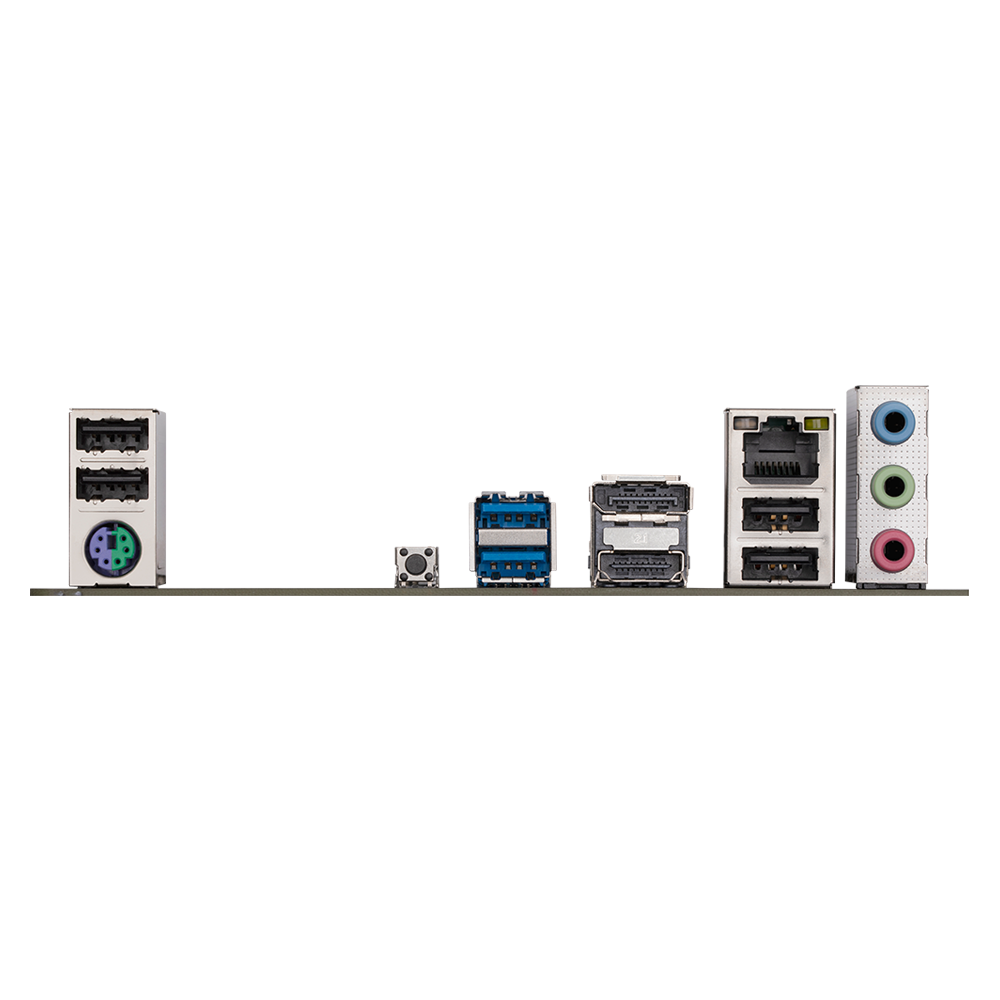

USB Ports (Back Panel):
- 2 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
Internal I/O Connectors (Highlights):
- 1 x CPU fan header
- 2 x system fan headers
- 1 x addressable LED strip header
- 1 x RGB LED strip header
- 1 x USB 3.2 Gen 1 header (for 2 ports)
- 2 x USB 2.0/1.1 headers (for 4 ports)
- 4 x SATA 6Gb/s connectors
Special Features:
- Smart Fan 6: Multiple temperature sensors and hybrid fan headers with FAN STOP function.
- Q-Flash Plus: Update BIOS without installing CPU, memory, or graphics card.
- EZ-Latch: PCIe x16 Slot with quick release design.
BIOS: 1 x 256 Mbit flash, licensed AMI UEFI BIOS.
Operating System Support: Windows 11 64-bit, Windows 10 64-bit.
