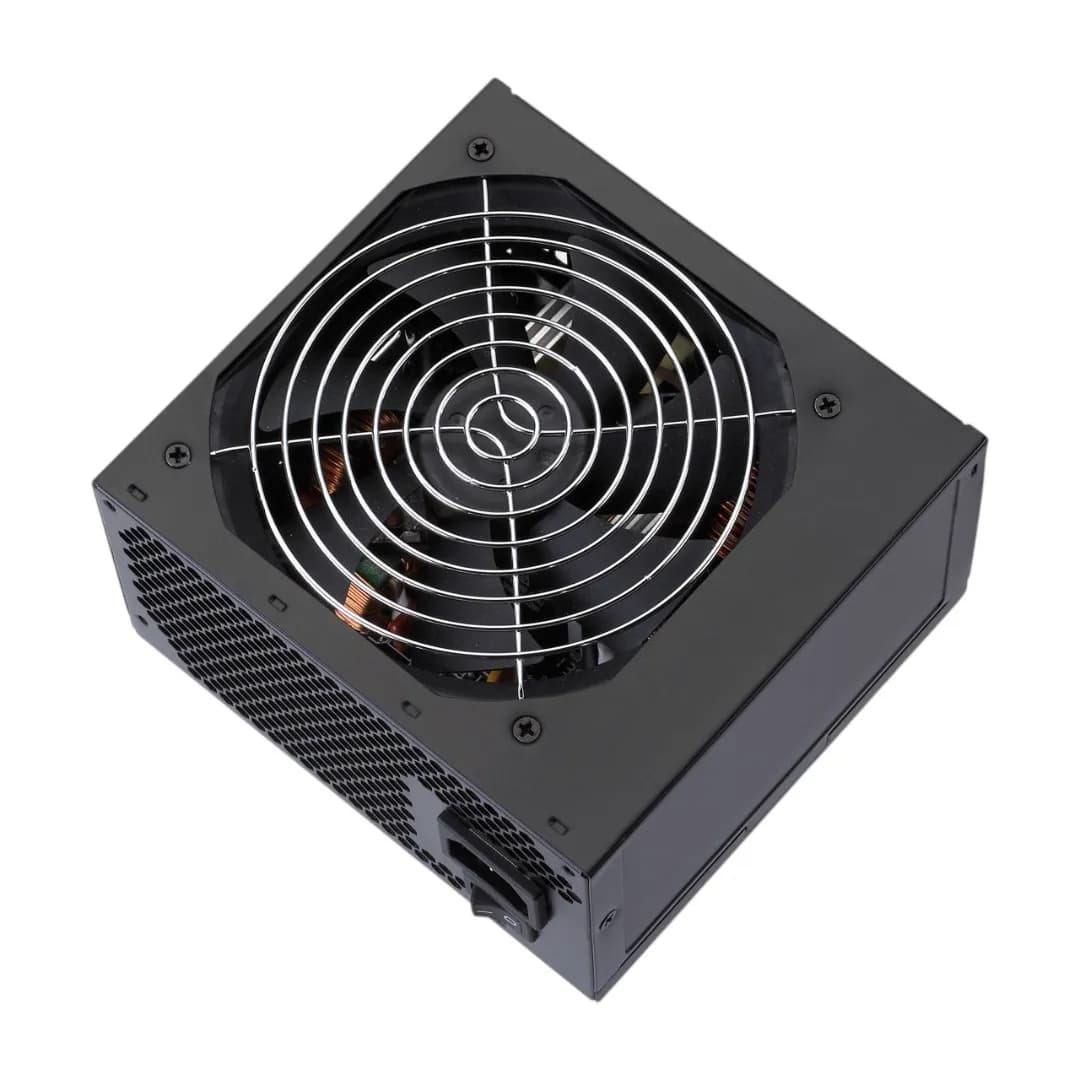

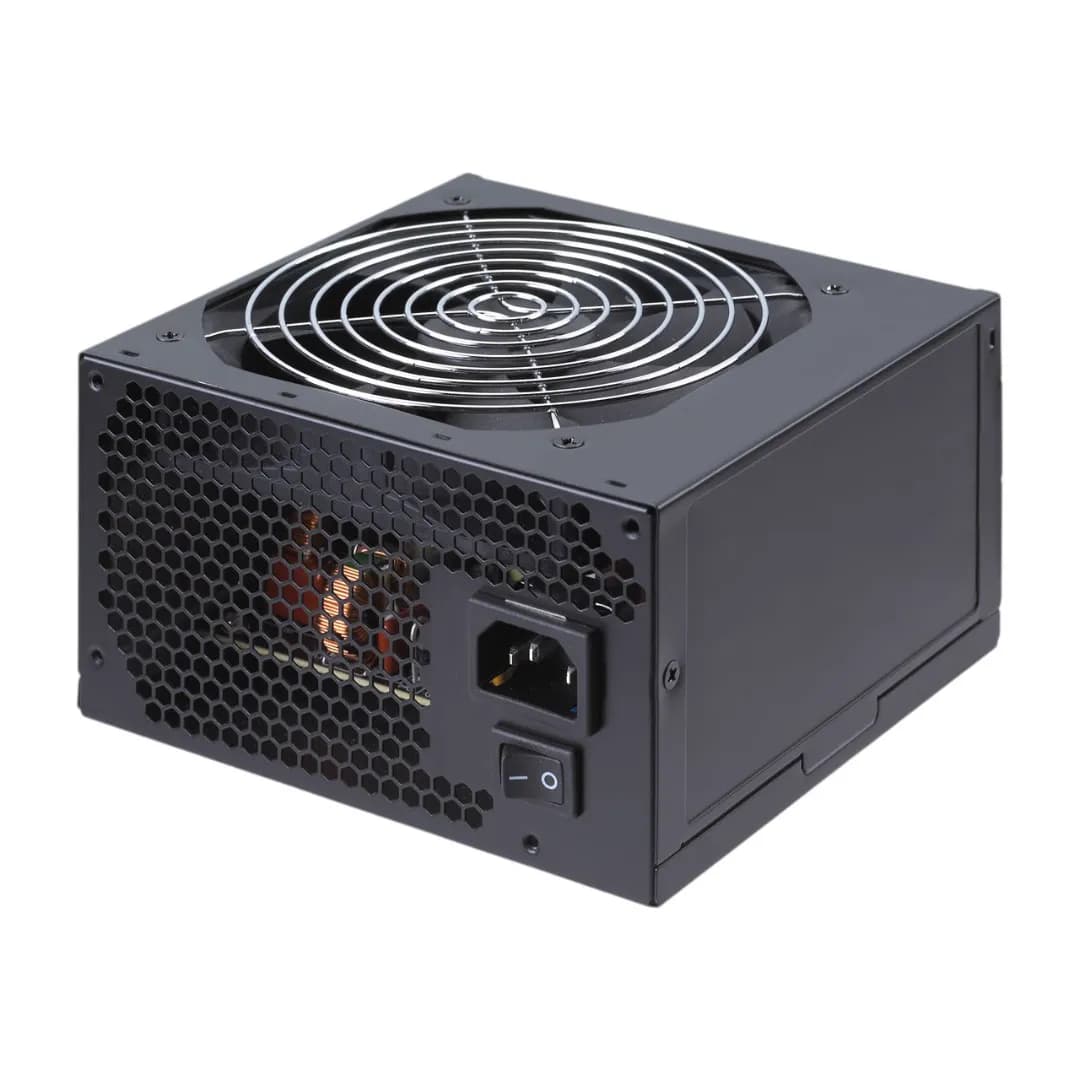

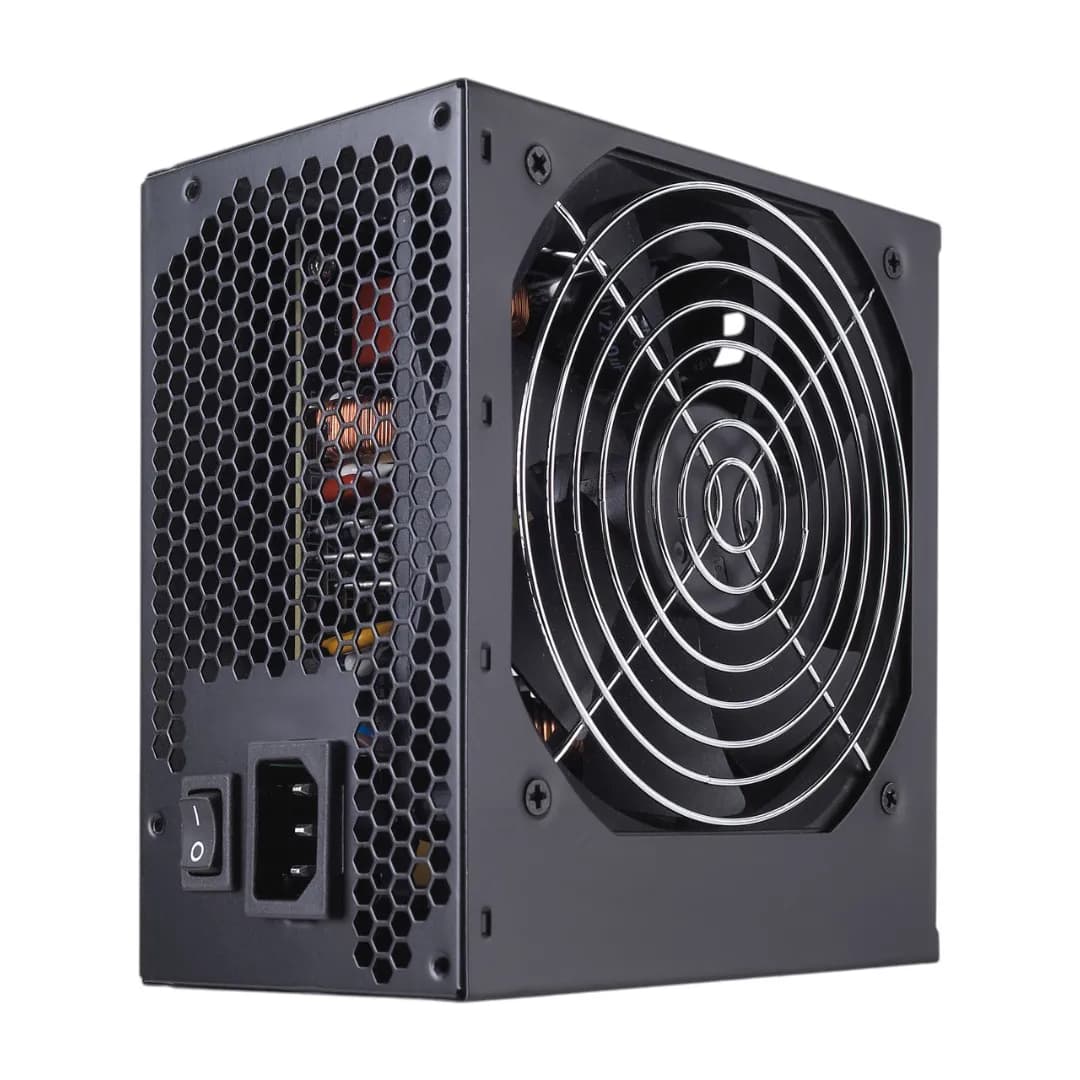

FSP HV+ 700W 80 Plus ATX Power Supply

FSP HV+ 700W 80 Plus ATX Power Supply

1 IQDOut of Stock

Specifications

  • Form factor: ATX
  • Continuous wattage: 700W
  • Efficiency certification: 80 PLUS 230V EU
  • Modularity: Non-Modular
  • ATX version: ATX 12V v2.4
  • Power connectors: Motherboard Connector: 1 × 24-Pin; CPU Connectors: 1 × 8-Pin / 1 × 4+4-Pin; PCIe Connectors: 4 × 6+2-Pin; SATA Connectors: 6; Molex Connectors: 2
  • Fan size: 120mm
  • Protections: OCP / OVP / SCP / OPP / UVP
  • Dimensions: 140 × 150 × 86mm
  • Features:
    • Power Supply Type: ATX Power Supply
    • Efficiency: ≥85% at Typical Load
    • EPS Standard: EPS 12V v2.92
    • PFC: Active PFC ≥0.9
    • +12V Rail: Single +12V Rail
    • +12V Output: 53A / 636W
    • Motherboard Connector: 1 × 24-Pin
    • CPU Connectors: 1 × 8-Pin / 1 × 4+4-Pin
    • PCIe Connectors: 4 × 6+2-Pin
    • SATA Connectors: 6
    • Molex Connectors: 2
    • Input Voltage: 200–240V
    • Input Current: 5A
    • Input Frequency: 50–60Hz
    • Fan Type: Sleeve Bearing Fan
    • Cooling Control: Thermal Fan Control

Specifications

Form factor
ATX
Continuous wattage
700W
Efficiency certification
80 PLUS 230V EU
Modularity
Non-Modular
Power connectors
Motherboard Connector: 1 × 24-Pin, CPU Connectors: 1 × 8-Pin / 1 × 4+4-Pin, PCIe Connectors: 4 × 6+2-Pin, SATA Connectors: 6, Molex Connectors: 2
1

Warranty: 12 months

See warranty details

Quick Delivery

Next Day Delivery

Customer Support

Available 24/7
