Specifications

• Platform: AMD
• Chipset: AMD B850
• Socket: AM5
• Form factor: Micro-ATX
• Supported CPU generations: AMD Ryzen 9000, 8000, and 7000 Series
• Memory type: DDR5
• Memory slots: 2 X DIMM
• Maximum memory: 128 GB
• Memory speed support: Up to DDR5-8200+ MT/s (Ryzen 9000), DDR5-9600+ MT/s (Ryzen 8000), DDR5-8000+ MT/s (Ryzen 7000) (OC)
• Expansion slots: 1 × PCIe 5.0 x16 (Ryzen 9000/7000) or PCIe 4.0 x16 (x8/x4 with Ryzen 8000); 1 × PCIe 4.0 x16 (x4)
• PCIe version: PCIe 5.0
• M.2 slots: 2 × M.2 (up to PCIe 5.0 x4; CPU-dependent)
• SATA ports: 4 X SATA 6Gb/s
• Networking: Realtek 2.5GbE

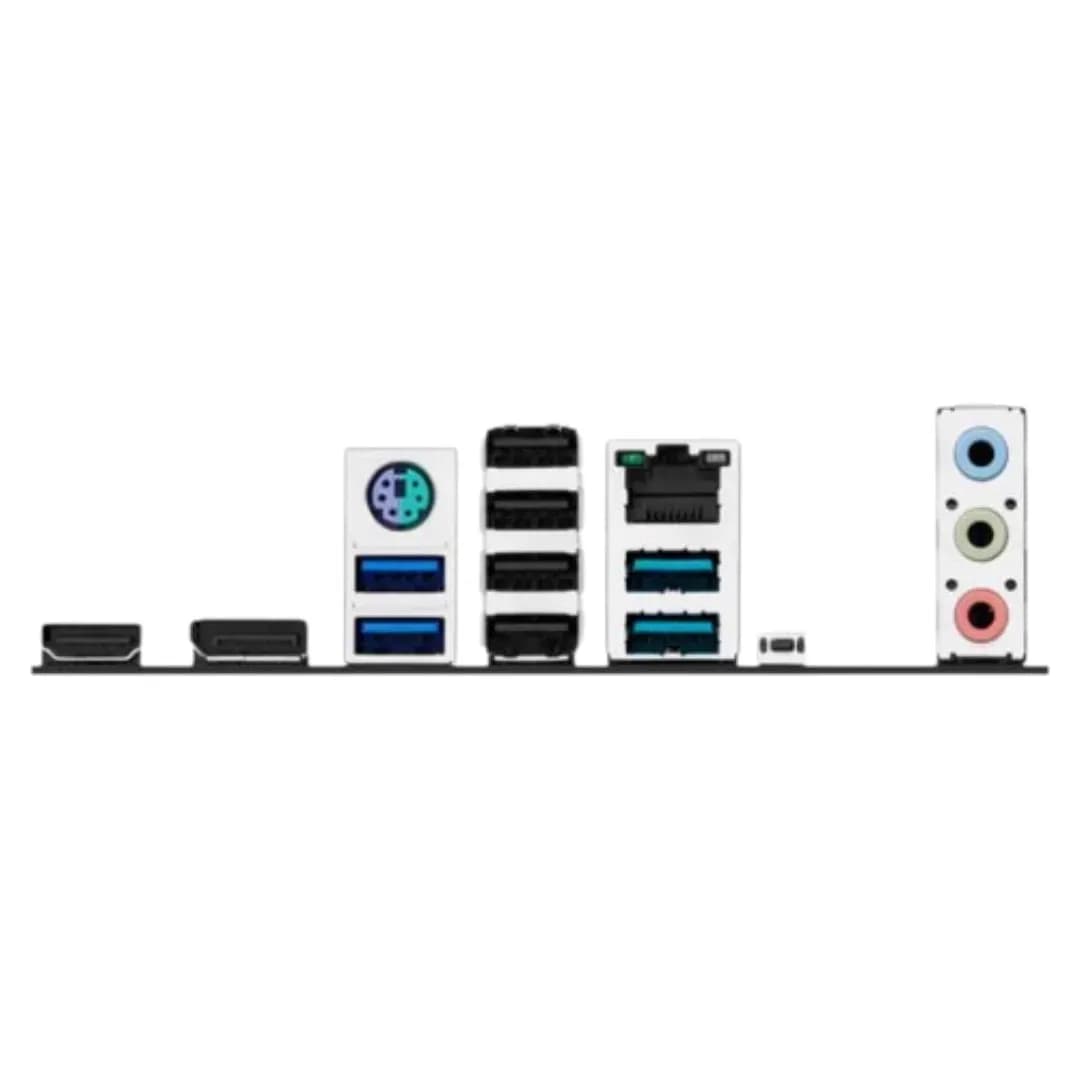

• Rear I/O: 2 × USB 10Gbps Type-A, 2 × USB 5Gbps Type-A, 4 × USB 2.0 Type-A, DisplayPort, HDMI, 2.5GbE, 3 audio jacks, BIOS FlashBack button, PS/2
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• BIOS flashback: BIOS FlashBack
• RGB/ARGB headers: 3 × Addressable Gen 2 headers
• Power connectors: 1 × 24-pin ATX, 1 × 8-pin CPU
• Features: Q-Dashboard; Q-LED Core; Q-Slot; M.2 heatsink
