Specifications

• Platform: Intel
• Chipset: Intel Z790
• Socket: LGA 1700
• Form factor: ATX (30.5 cm × 24.4 cm)
• Supported CPU generations: Intel Core 14th, 13th, and 12th Gen; Pentium Gold; Celeron
• Memory type: DDR4
• Memory slots: 4 X DIMM
• Maximum memory: 128 GB
• Memory speed support: Up to DDR4-5333 MT/s (OC)
• Expansion slots: 1 × PCIe 5.0 x16; 1 × PCIe 4.0 x16 (x4); 1 × PCIe 4.0 x4; 2 × PCIe 3.0 x1
• PCIe version: PCIe 5.0
• M.2 slots: 4 × M.2: 3 × PCIe 4.0 x4; 1 × PCIe 4.0 x4/SATA (M.2_4)
• SATA ports: 4 X SATA 6Gb/s
• Networking: Intel 2.5GbE

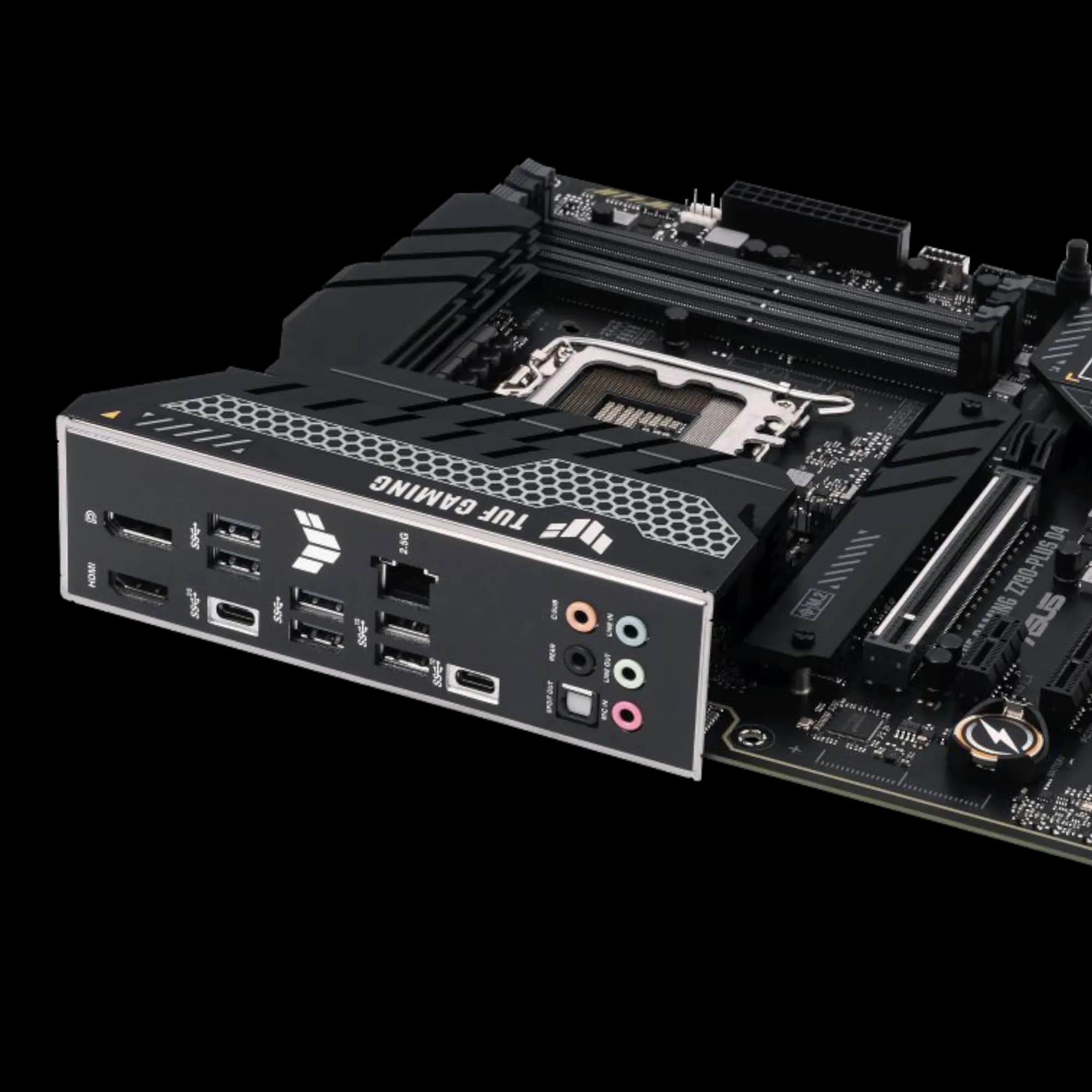

• Rear I/O: 1 × USB 3.2 Gen 2x2 Type-C, 2 × USB 3.2 Gen 2 Type-A, 1 × USB 3.2 Gen 2 Type-C, 4 × USB 3.2 Gen 1 Type-A, DisplayPort, HDMI, 2.5GbE, 5 audio jacks, optical S/PDIF
• Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
• RGB/ARGB headers: 3 × Addressable Gen 2 headers, 1 × Aura RGB header
• Power connectors: 1 × 24-pin ATX, 1 × 8-pin CPU, 1 × 4-pin CPU
• Features: M.2 Q-Latch; PCIe Slot Q-Release; Q-LED; pre-mounted I/O shield
