Specifications

• Platform: Intel
• Chipset: Intel Z790
• Socket: LGA 1700
• Form factor: ATX (30.5 cm × 23.4 cm)
• Supported CPU generations: Intel Core 14th, 13th, and 12th Gen; Pentium Gold; Celeron
• Memory type: DDR5

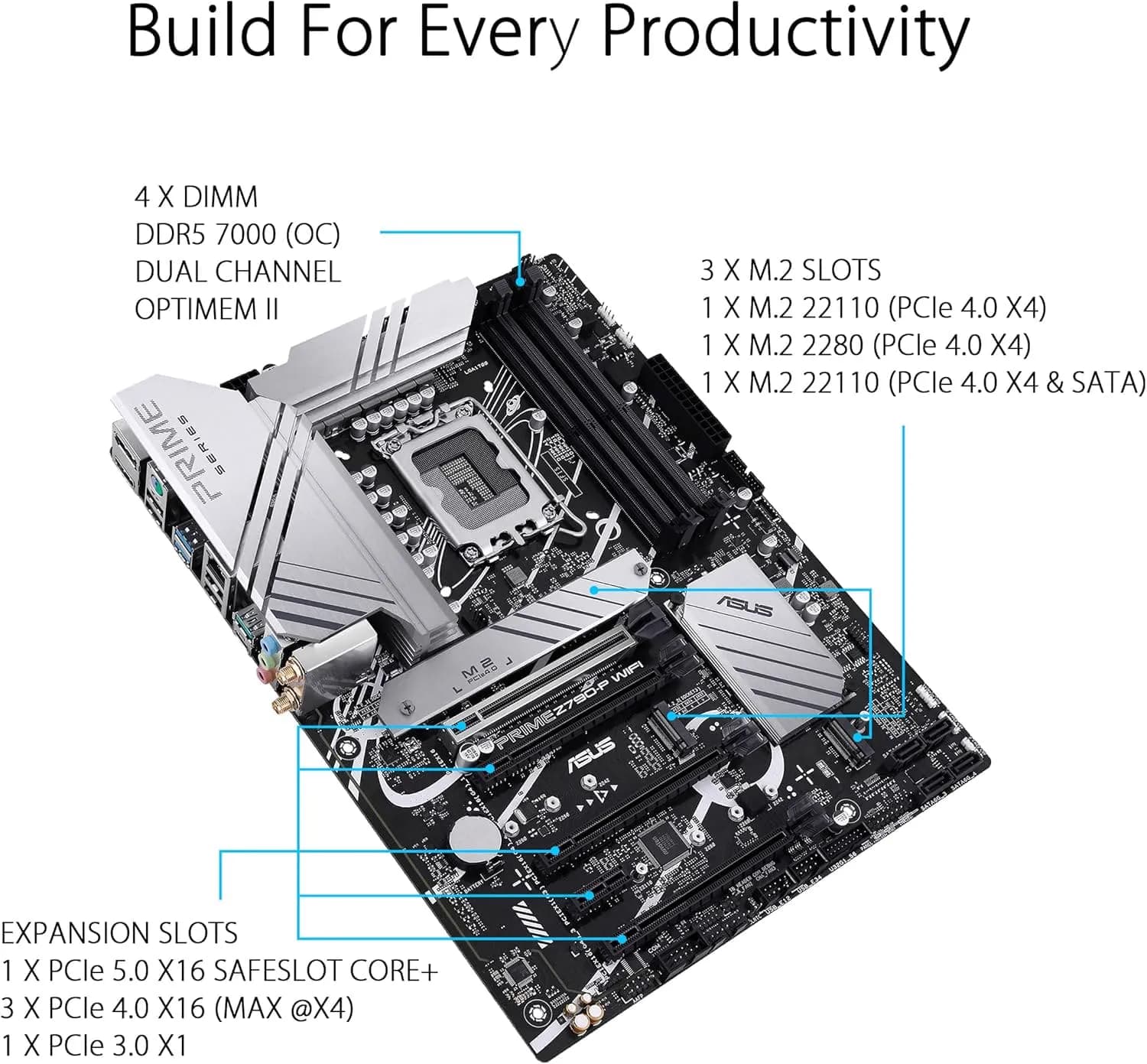

• Memory slots: 4 X DIMM
• Maximum memory: 192 GB
• Memory speed support: Up to DDR5-7200+ MT/s (OC)
• Expansion slots: 1 × PCIe 5.0 x16; 3 × PCIe 4.0 x16 (x4); 1 × PCIe 3.0 x1
• PCIe version: PCIe 5.0
• M.2 slots: 3 × M.2: 2 × PCIe 4.0 x4; 1 × PCIe 4.0 x4/SATA (M.2_3)
• SATA ports: 4 X SATA 6Gb/s
• Networking: Realtek 2.5GbE, Wi-Fi 6, Bluetooth 5.2

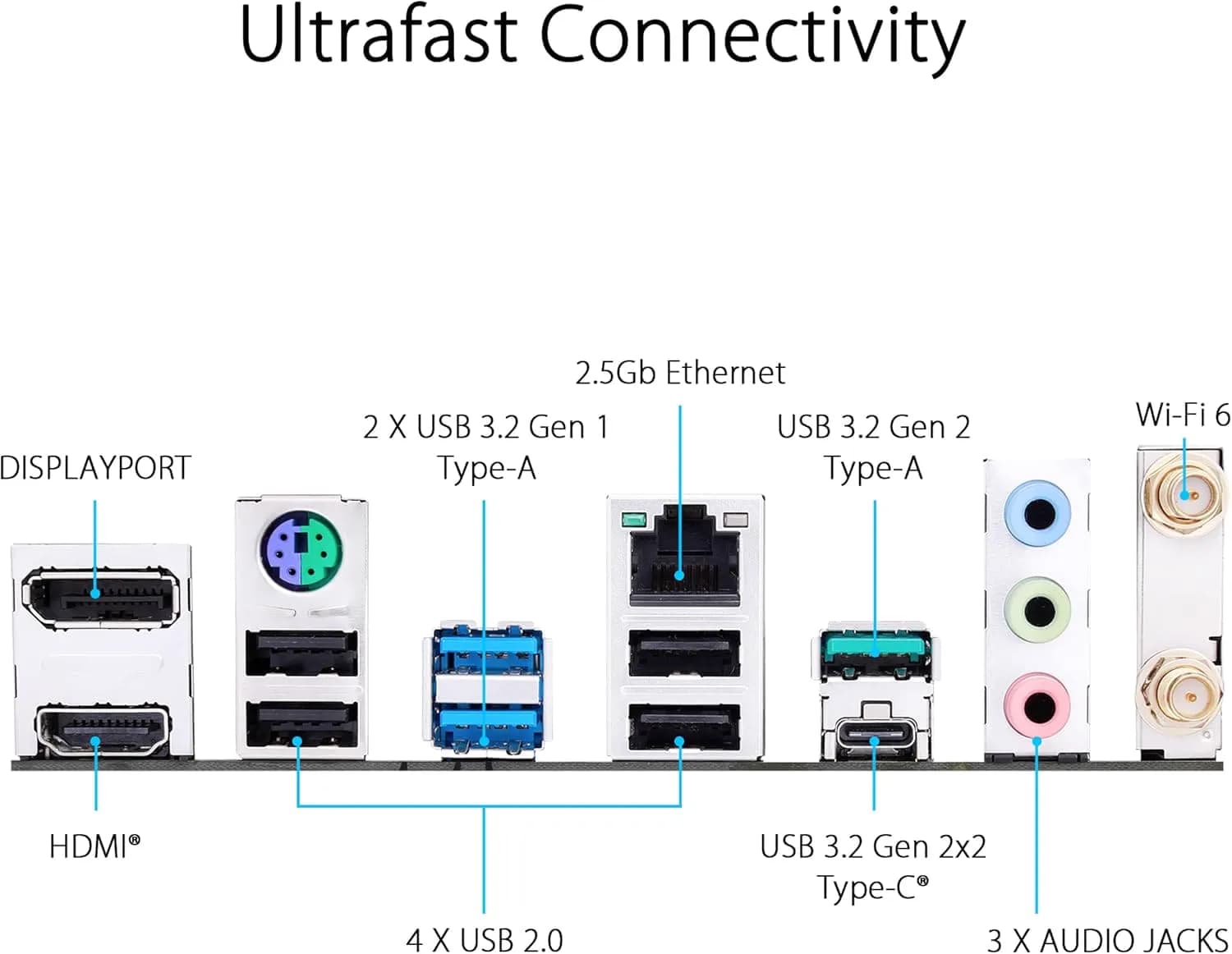

• Rear I/O: 1 × USB 3.2 Gen 2x2 Type-C, 1 × USB 3.2 Gen 2 Type-A, 2 × USB 3.2 Gen 1 Type-A, 4 × USB 2.0 Type-A, DisplayPort, HDMI, Wi-Fi antenna connectors, 2.5GbE, 3 audio jacks, PS/2
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• RGB/ARGB headers: 3 × Addressable Gen 2 headers, 2 × Aura RGB headers

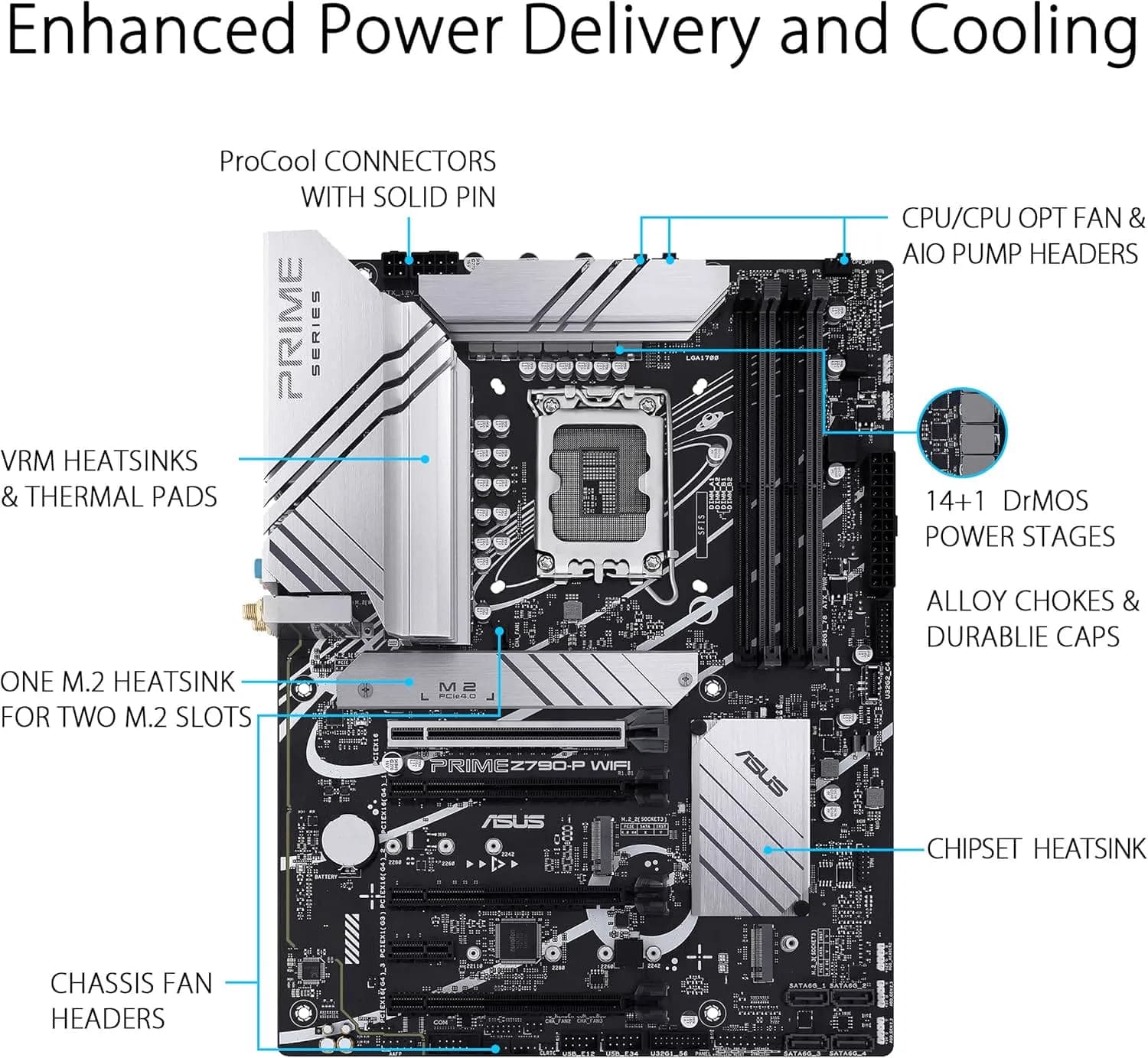

• Power connectors: 1 × 24-pin ATX, 1 × 8-pin CPU, 1 × 4-pin CPU
• Features: Q-LED Core; M.2 heatsink; USB4 header
